Parameter |
Specification |
|---|---|
|
Physical |

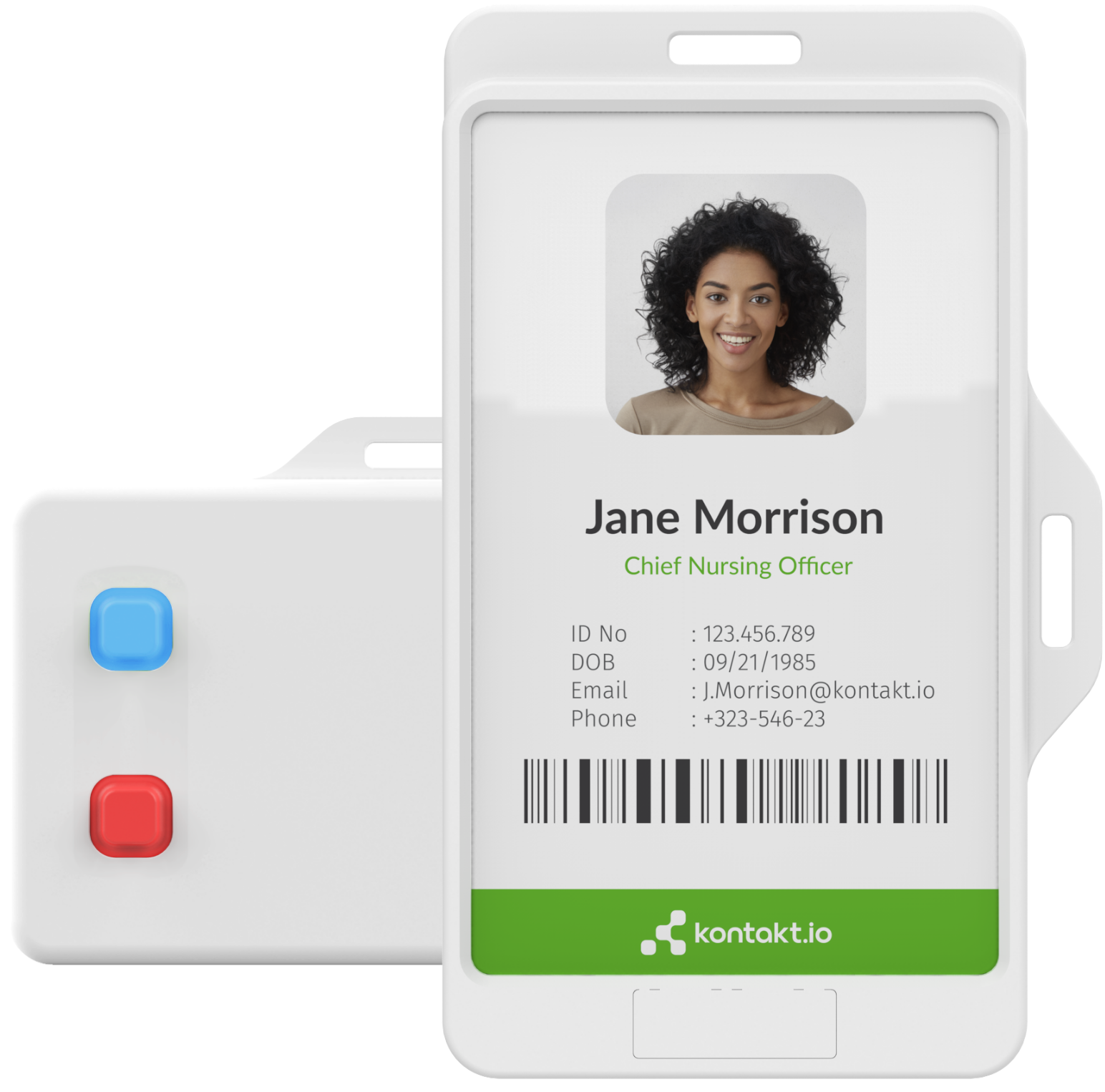

Dimension: 2.55 in x 4.21 in x 0.29 in (65 mm x 107 mm x 7.5 mm) Weight: 1.02 oz (29 grams) Casing: IP 65 Buttons: Two programmable call buttons, red and blue |
|
Electronics |
Nordic Semiconductor nRF52832 Microcontroller IR receiver LIS2DH/LIS3DH accelerometer; motion and orientation detection Temperature Sensor Two buttons |
|
Bluetooth Low Energy Radio |
Wireless standard: Bluetooth LE 5.0 Range: Up to 98 feet (30 meters) Supported data packets: Kontakt.io Secure Profile, Telemetry, and Location, iBeacon, Eddystone |
|
Battery Power |
Battery life: 3 years with IR active, 5 years with 1 Hz beaconing Battery type: CP224147 Replaceable: No |
|
Environmental |
Operating temperature: 32°F to 131°F (0°C to 55°C) Operation humidity: 10% to 90% non-condensing |
|
Features |
Over-the-Air (OTA) configuration; cloud management Beacon broadcasting IR scanning for room-level tracing Environmental temperature sensing Motion detection Button call (push) event |
