Dimensions and weight |
Height |
0.9 in (23 mm) |
|
Width |
0.7 in (18 mm) |
|
|
Depth |
0.3 in (8 mm) |
|
|
PCB dimensions |
0.4 x 0.4 in (12 x 12 mm) |
|
|
Weight |
0.07 oz (2 g) |
|
|
Electronics |
Microcontroller |
Dialog DA14531 16 MHz 32-bit Arm® Cortex® M0+ |
|
Accelerometer |
Optional (custom order) |
|
|
Memory Operation |
1Mbit Flash, 48KB RAM, 144KB ROM, 32KB OTP 1.8V - 3.3V, -40°C to 85°C (-40°F to 185°F) |
|
|
Connectivity |
Bluetooth |
5.1 qualified (Bluetooth DID: D050903) |
|
Range |
165 feet (50 meters) in open space with gateway sensitivity -98dBm |
|
|
Battery and power |
Model |
Silver Oxide battery, disposable, non-toxic, medically safe |
|
Number of batteries |
1 |
|
|
Replaceable |
No |
|
|
Operating temperature range |
14°F to 140°F (-10°C to 60°C) |
|
|
Battery life |
11 months shelf life 3 month battery life (Tx power +2.5 dBm, Interval 1000 ms; 1Hz, single channel) Battery life can be extended to a full operating year or even more at a slower location update rate (requires pre-shipment custom configuration) |
|
|
Activation |
Press and hold its front side for 3 to 5 seconds and release when you see its LED blink. When its LED consecutively blinks up to 5 times, the Nano Tag is ON and ready for use. |
|
|
Casing |
Colors |
RAL 9003 |
|
Protection |
IP 67 |
|
|
Water resistant for easy cleaning |
Yes |
|
|
Tamper-proof |
No |
|
|

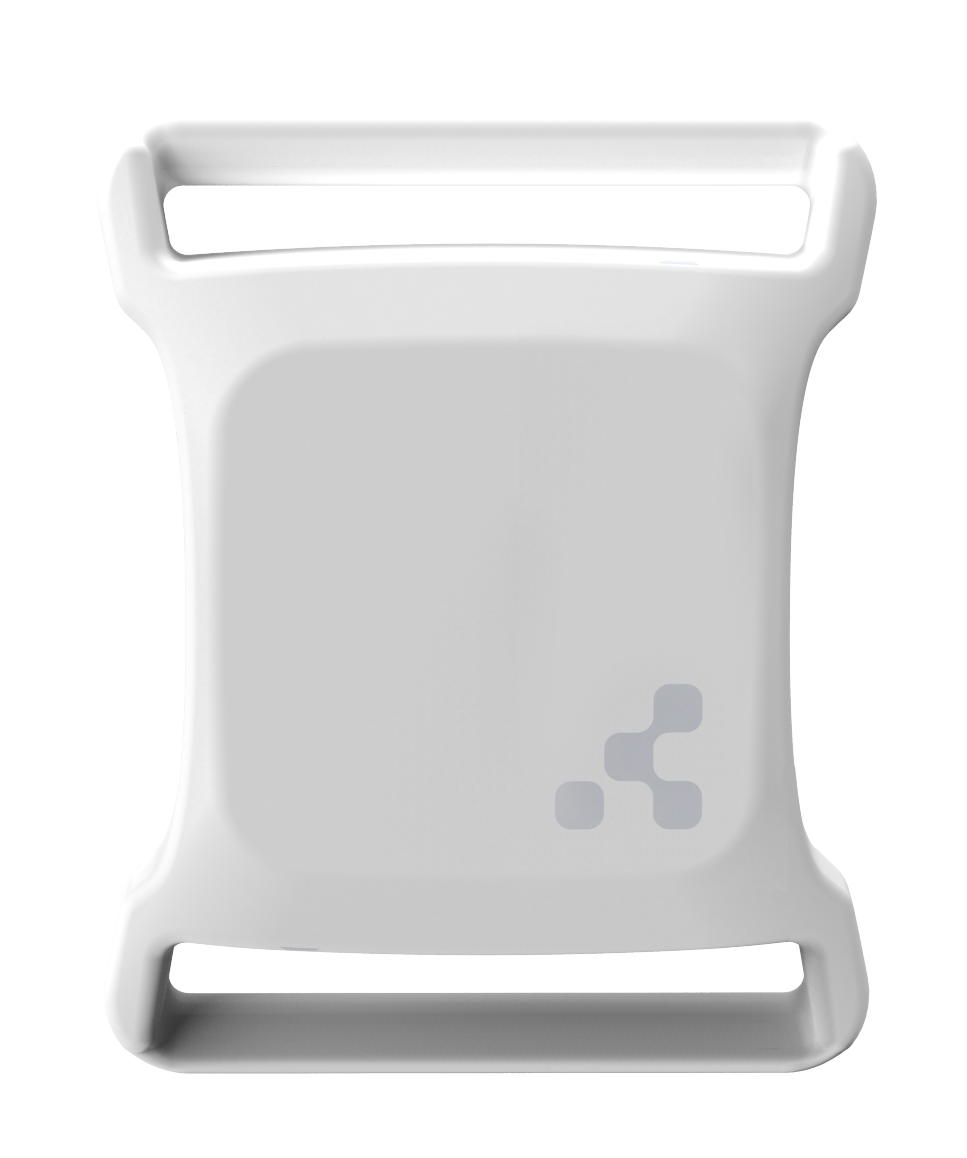

Mounting |
2 slots for wristband |
|
|
Certification |
FCC, CE |
|
|
Product identification |
QR code |
MAC address |
