When you're ready to begin deploying your Kontakt.io devices, the following provides the required steps to get the devices ready for use. Deploying Kontakt.io infrastructure devices require installing the devices with the Kio Setup Manager mobile app. And for your Kontakt.io Tag devices, by factory default these are shipped powered on and are ready for use. Although for custom or large orders, tags may include an activation sticker that indicates they must be powered on for use.
Topics include:
-
Be sure the Kontakt.io order has been claimed from Device Management 2.0, which which adds the devices to your Kontakt.io account.
-
Be sure Smart Location setup is complete — campuses, buildings, floors, and rooms.
-
To deploy devices, you must be assigned to a Device Management role. Learn more about these roles.
-
If your deployment includes Portal Lights, always install these first.
Kontakt.io Infrastructure devices are required to be setup and installed using the Kio Setup Manager mobile app. Infrastructure are devices that are stationary, remain in a fixed location, and are assigned to their Smart Location install location.
You'll need to configure each Portal Light with the facility's local Wi-Fi network to allow its connection to Kio Cloud and complete the Portal Light install steps from the Kio Setup Manager app.
Portal Light configure and install instructions
IMPORTANT: if your deployment includes Portal Lights, set up and install these devices first.
Deployment and installation is dependent on the occupancy solution being deployed.
Room Occupancy deployment guide
The battery-powered Anchor Beacon 2 must be activated for use. If shipped activated, its packaging will include a sticker indicating it has been activated and is ready for use.
To activate, pull the yellow tab (battery separator) on the Anchor Beacon's top side. Once activated, its battery power is ON and it's ready for use

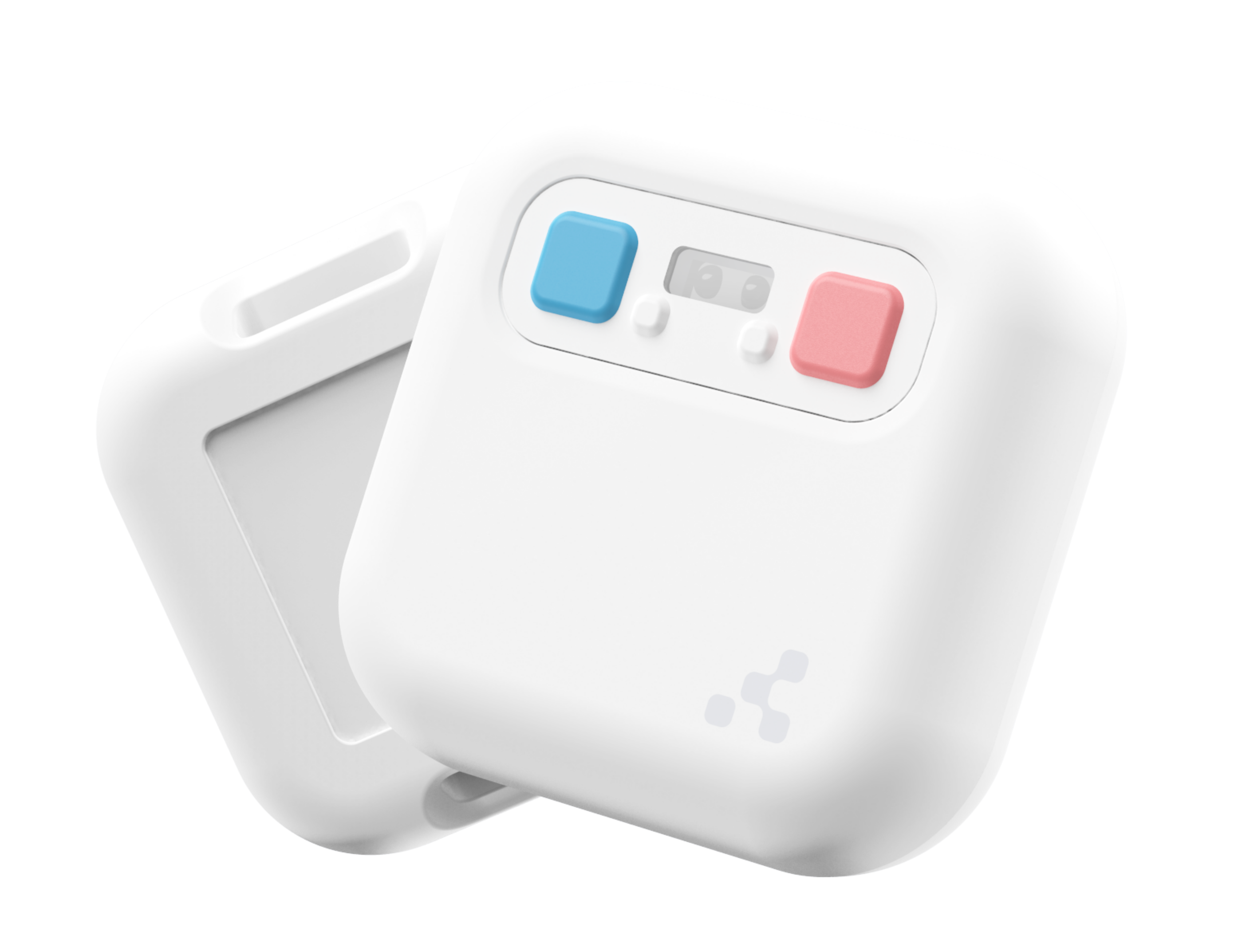

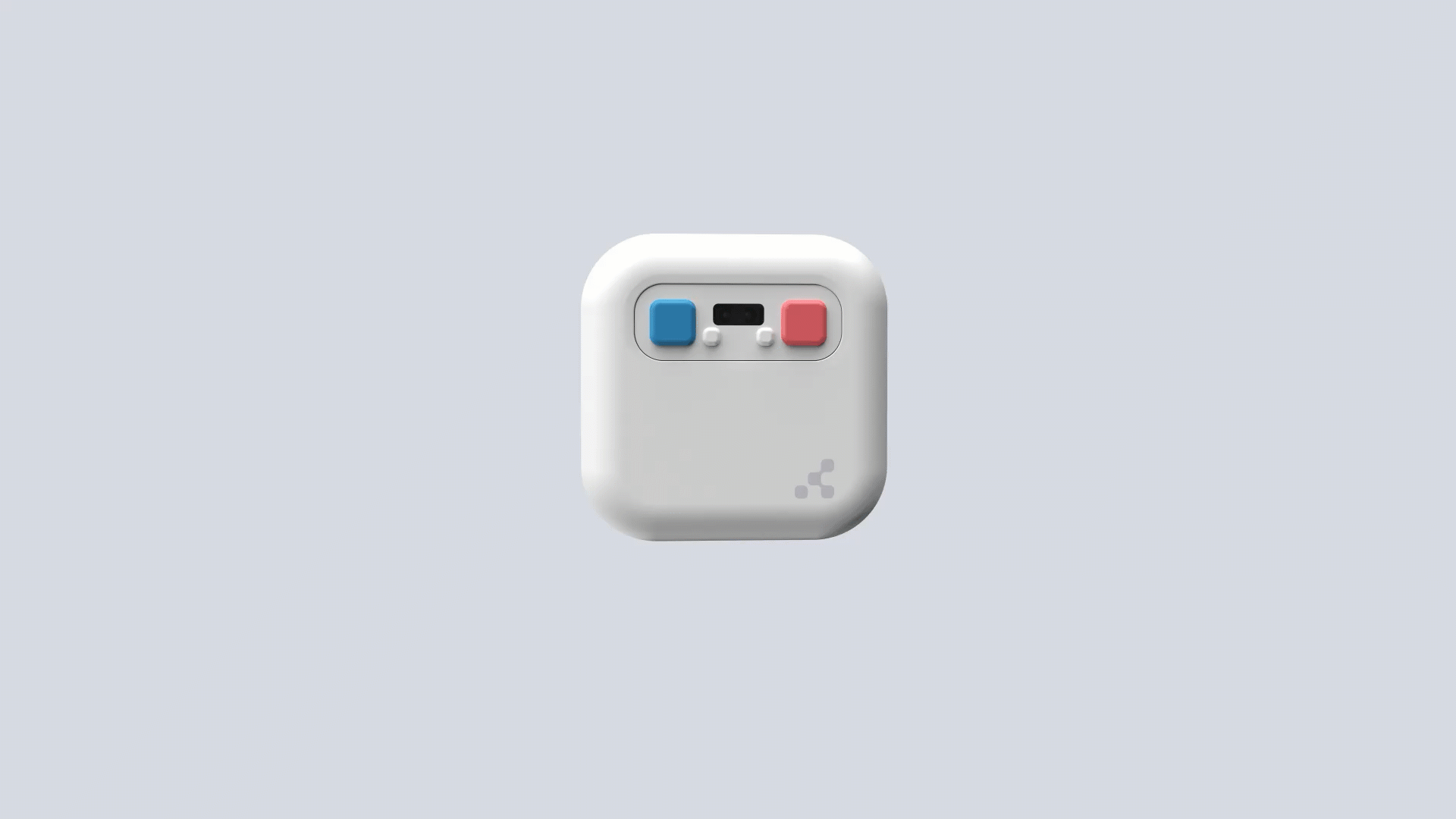

By default, the battery-powered Asset Tag 2 is shipped from Kontakt.io with its power turned ON. If a tag is shipped with its power OFF, its packaging will include a sticker indicating that it must be powered ON before use.
-
Press and quickly release the blue or red button.
-
The button LED should blink for a few seconds, confirming that the tag is powered ON.
Warning
Continuously pressing either of the tag's buttons may result in activating a button press event. If you do not see an LED flashing after a button press, do not press a button for 5 seconds to allow the tag to clear the previous button event.
If a tag's LED does not blink after pressing and quickly releasing its blue or red button, follow the below steps to turn it ON.
-
Press and hold the blue or red button for 5 seconds.
-
The button LED should blink for a few seconds, confirming that the tag is powered ON.
The capability to power off a tag is managed from the Power Off setting located in within its Sensors/IR section in Device Management 2.0. By default, this setting is disabled.
-
Press and hold either the blue or red button for 5 seconds.
-
Once the LED stops blinking, this confirms that the tag has been turned OFF.

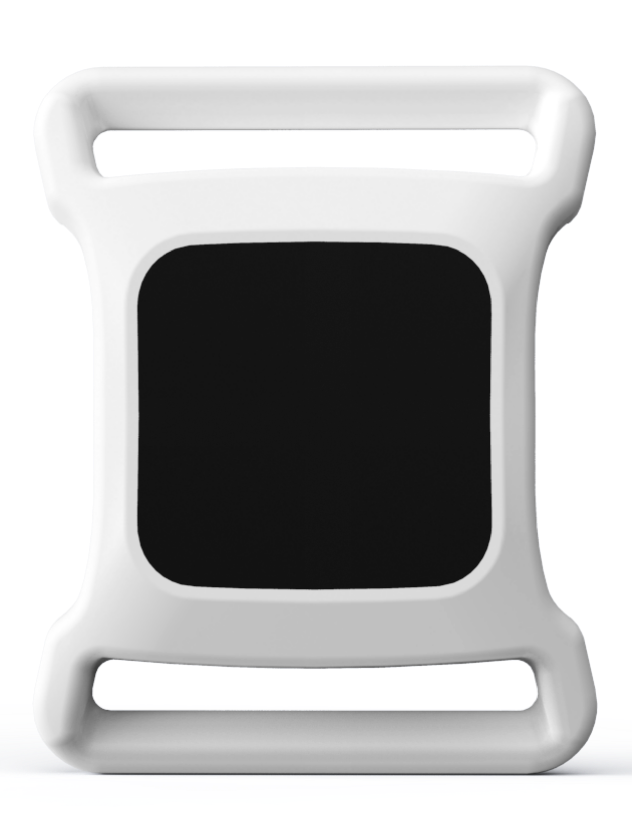

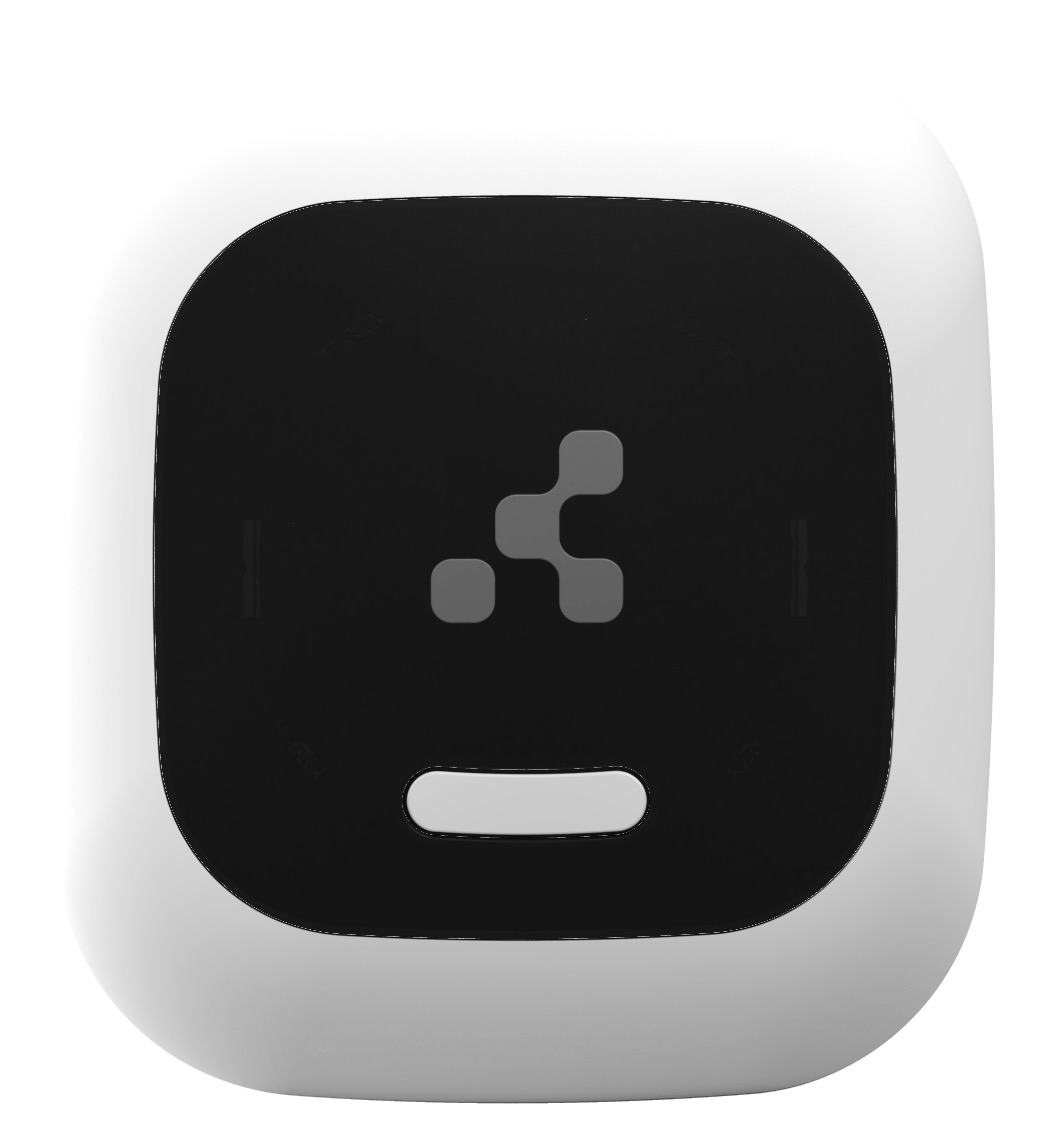

By default, the battery-powered Asset Tag 2 Mini is shipped from Kontakt.io with its power turned ON. If a tag is shipped with its power OFF, its packaging will include a sticker indicating that it must be powered ON before use.
-
Press and quickly release its front-side button.
-
The button LED should blink for a few seconds, confirming that the tag is powered ON.
Warning
Continuously pressing the tag's button may result in activating a button press event. If you do not see its LED flashing after a button press, do not press its button for 5 seconds to allow the tag to clear the previous button event.
If a tag's LED does not blink after pressing and quickly releasing its front-side button, follow these steps to turn it ON:
-
Press and hold its front-side button for 5 seconds.
-
The button LED should blink for a few seconds, confirming that the tag is powered ON.
The capability to power off a tag is managed from the Power Off setting located in within its Sensors/IR section in Device Management 2.0. By default, this setting is disabled.
-
Press and hold its front-side button for 5 seconds.
-
Once the LED stops blinking, this indicates it is now powered OFF.
To verify it is powered OFF, quickly press and release its front-side button and confirm the LED does not blink.
A Kontakt.io Sticker Tag is equipped with Near Field Communication (NFC) technology that requires activation for use. This activation is completed using the Kio Setup Manager mobile app. Once activated, the Sticker Tag is ready for use and can then be assigned to a tracked asset within the Kontakt.io platform.
-
Download the Kio Setup Manager mobile app. If you already have the app, be sure to check for updates.
To download the app, go to the App Store or Google Play. Search for Kio Setup Manager
.
App requirements: Apple iPhone or iPad: iOS version 16 or later | Android phone or tablet: version 8 or later | Bluetooth enabled (on) | Internet connection
-
Kontakt.io Order ID is claimed. The Sticker Tag is listed in Device Management 2.0 within the Tags menu.
-
From your mobile device, open Kio Setup Manager.
The first time you sign in or after reinstalling the app, you will complete all of the following steps. Once you’ve successfully signed in, the app remembers your Sign In Method and Region.
-

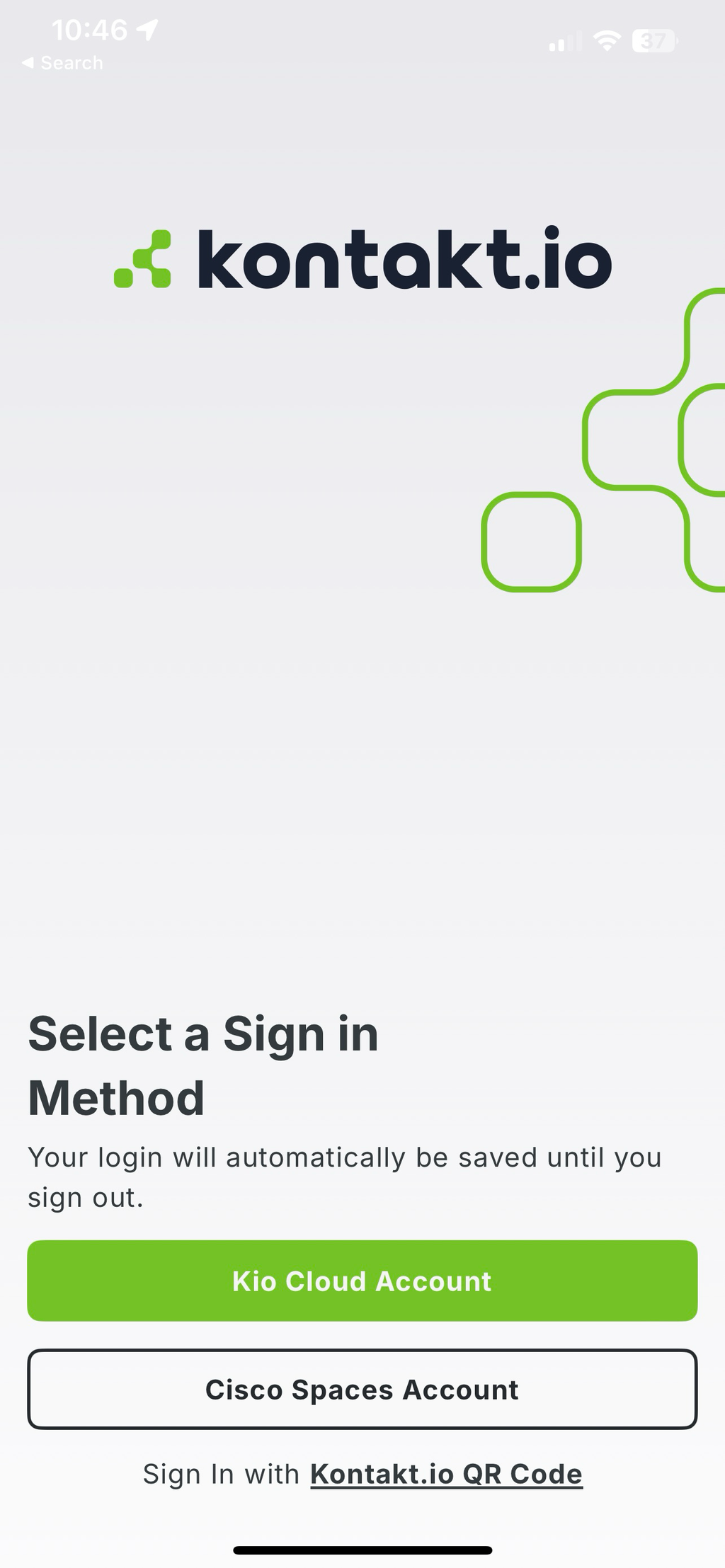

Select a Sign in Method > tap Kio Cloud (most common method).
Cisco Spaces Account: for use when installing Kontakt.io Portal Beams integrated with Cisco Spaces.
Sign in with Kontakt.io QR code: for use only when instructed by the Kontakt.io team.
-

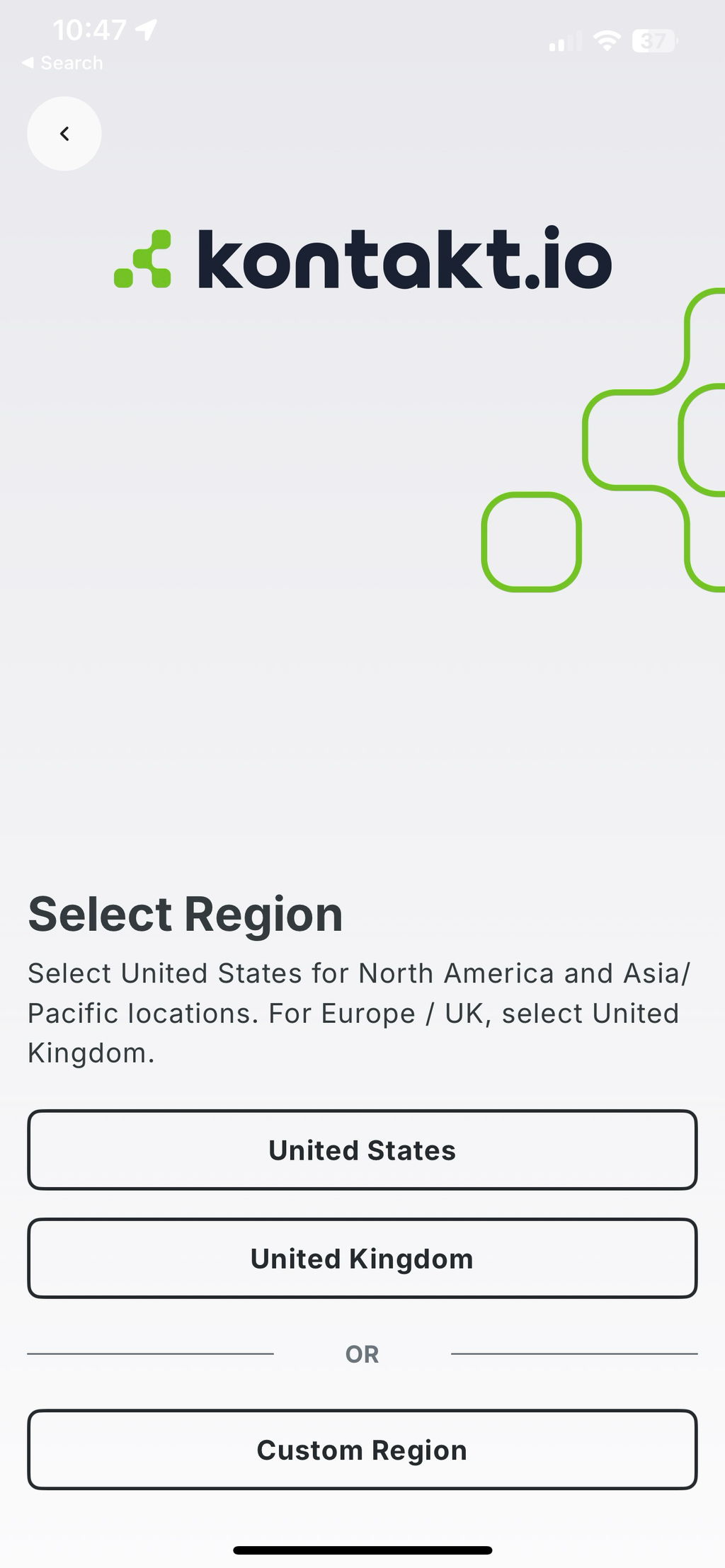

Select Region > tap the geographic location of your Kontakt.io cloud account.
United States: located in North America or Japan-Asia Pacific locations.
United Kingdom: located in the UK, EU, and other European countries.
Custom Region: only select when instructed by the Kontakt.io team; for dedicated enterprise accounts only.
-

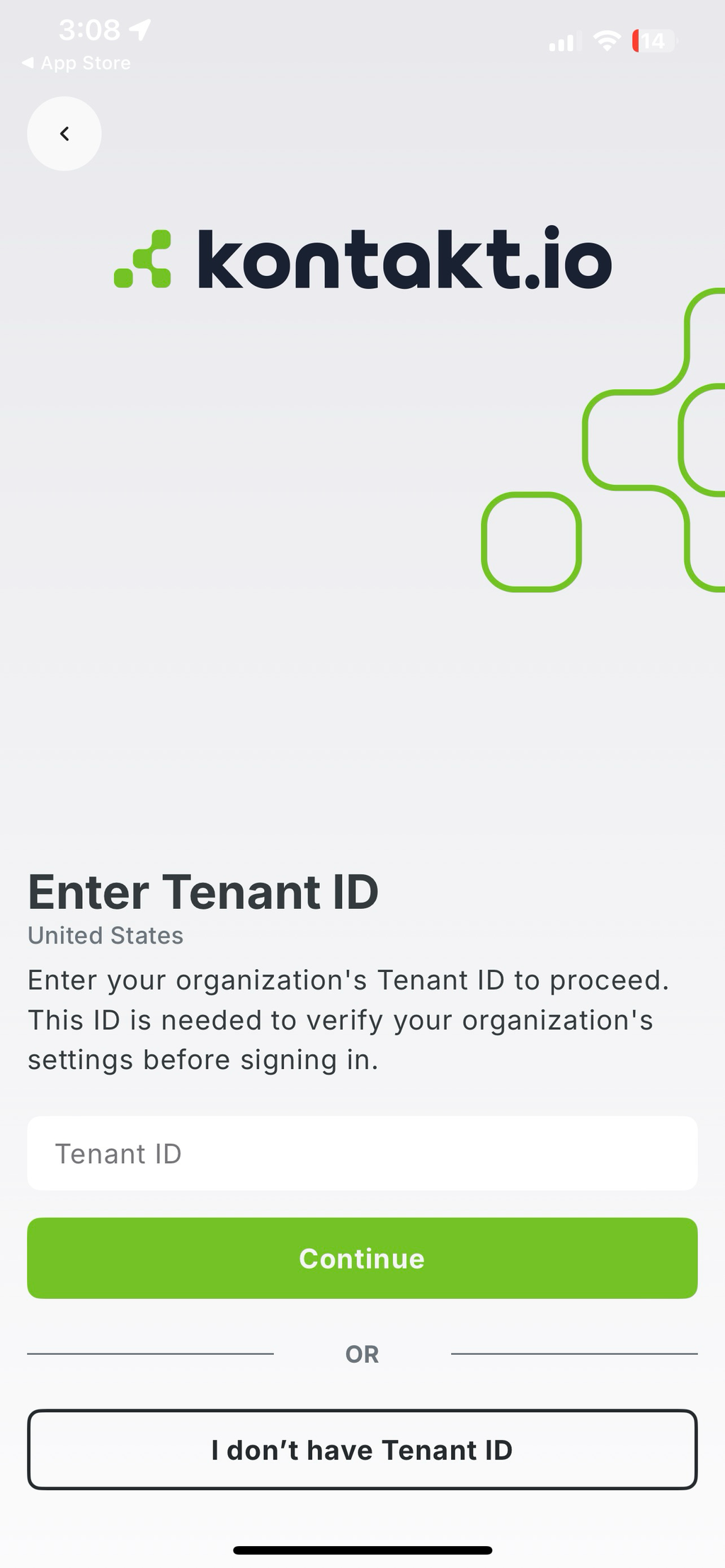

Enter Tenant ID is dependent on your organization's Kio Cloud account type. Refer to the below table for more details.
Enter a "Tenant ID" when...
Tap "I don't have a Tenant ID" when...
Your organization has a Tenant account. You sign in to Kio Cloud from an unique URL that includes the Tenant ID.
Example: https://[Tenant ID].app.cloud.[us or uk].kontakt.io
To sign in: enter the Tenant ID > tap Continue > provide your user credentials (email/password or SSO).
You sign in to Kio Cloud from a web browser from either of the below URLs (Non-Tenant account):

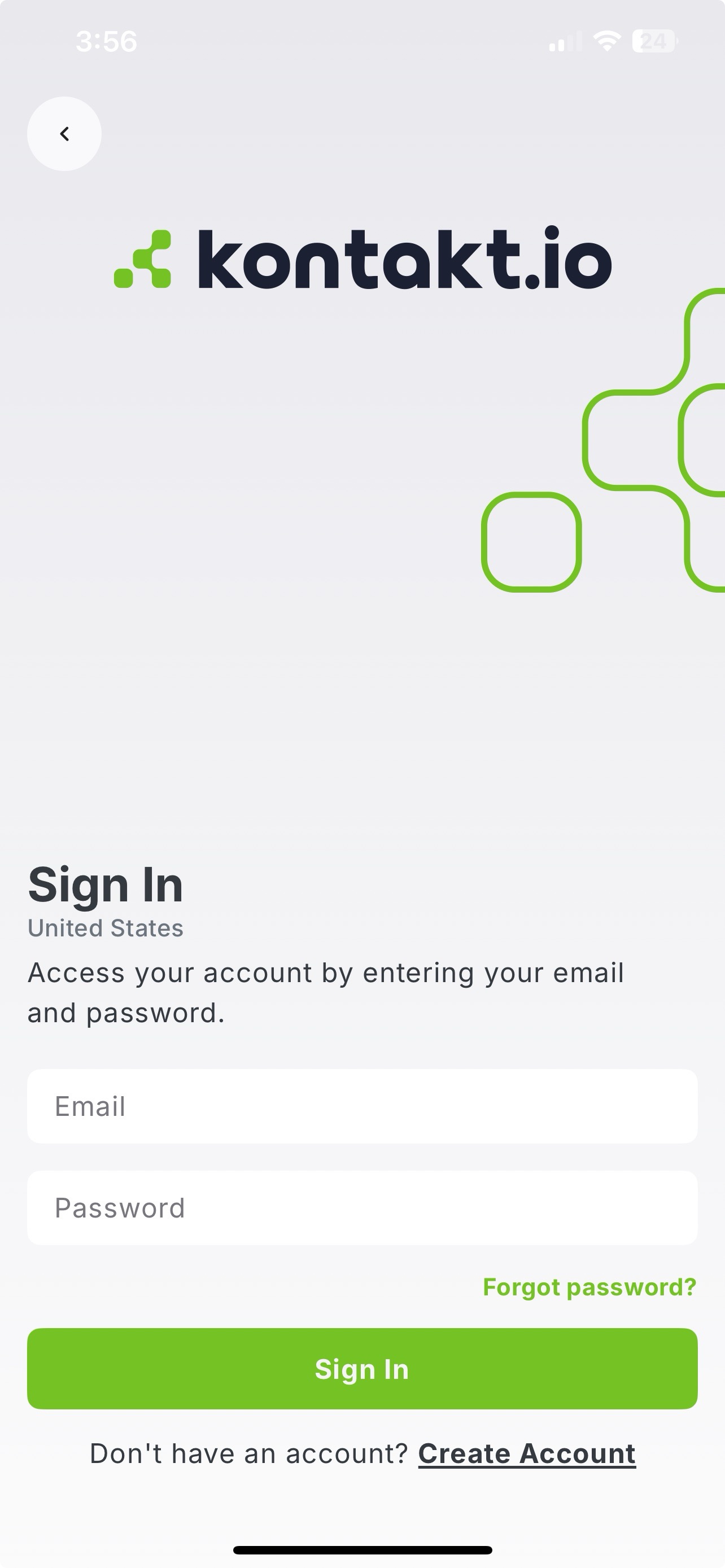

To sign in: provide your Kio Cloud user email and password credentials.
Once signed in to Kio Setup Manager, complete the following steps.

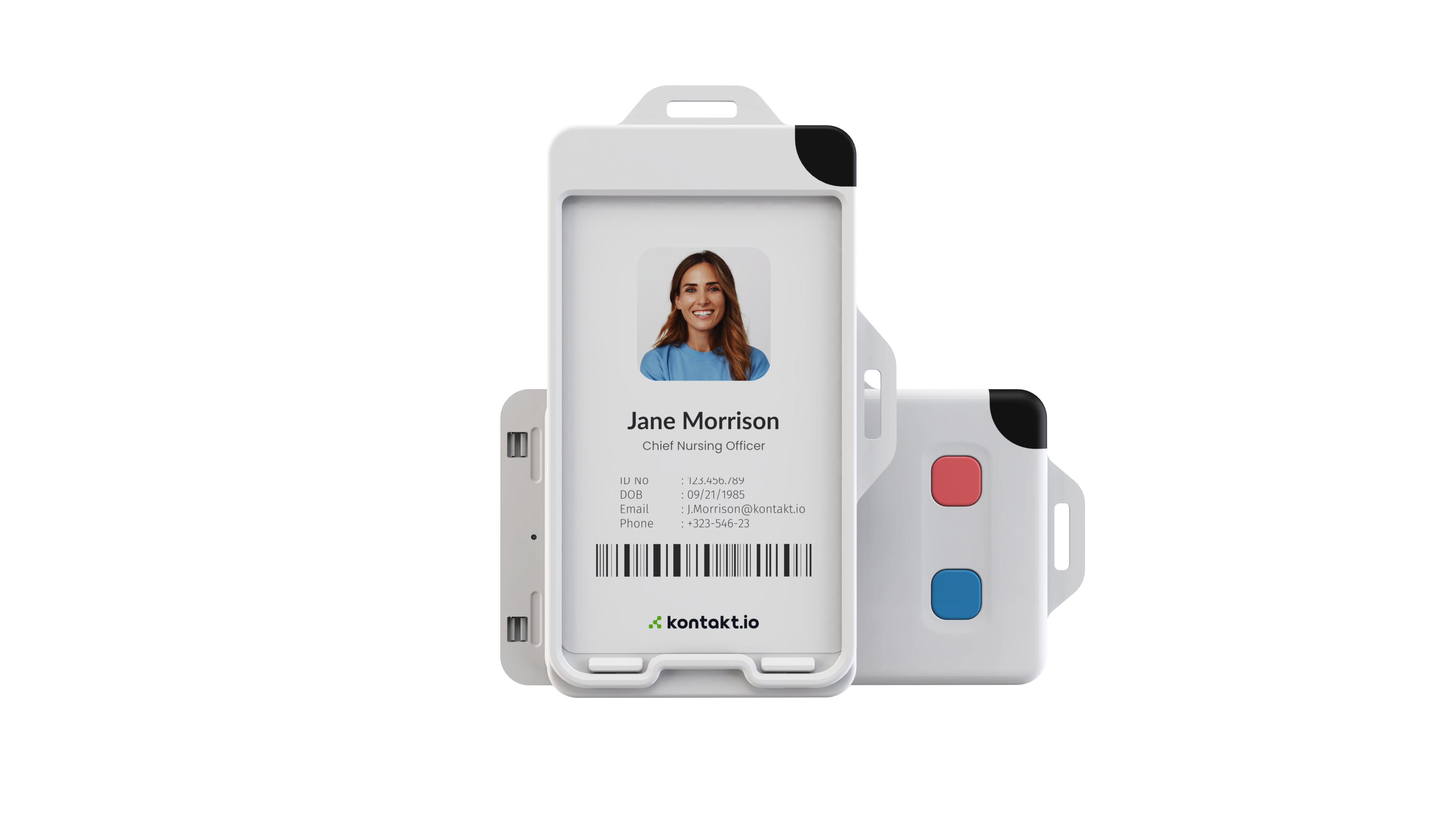

By default, the battery-powered Smart Badge is shipped from Kontakt.io with its power turned ON. If a badge is shipped with its power OFF, its packaging will include a sticker indicating that it must be activated for use.
-
Press and quickly release the blue or red button.
-
The button LED should blink for a few seconds, confirming that the badge is powered ON.
Warning
Continuously pressing either button may result in activating a button press event. If you do not see an LED blink after a button press, do not press a button for 5 seconds to allow the device to clear the previous button event.
If a badge's LED does not blink after pressing and quickly releasing a button, follow below steps to turn it ON.
-
Press and hold the blue or red button for 5 seconds.
-
The button LED should blink for a few seconds, confirming that the badge is powered ON.
Note
This feature is disabled by factory default and managed from a badge's Power Off setting within Device Management 2.0.
-
Press and hold either the blue or red button for 5 seconds.
-
Once the LED stops blinking, this indicates the badge is powered OFF.
When OFF, the LED does not blink when pressing and quickly releasing a button.
A Nano Tag must be activated for use. Once activated, it has up to a 3-month battery life with the factory default settings (Tx power +2.5 dBm, Interval 1000 ms; 1Hz, single channel). The battery life of a Nano Tag can be extended to a full operating year or more with a slower location update rate, but this requires custom configuration prior to shipment. To learn about Nano Tag customization, contact our sales team.

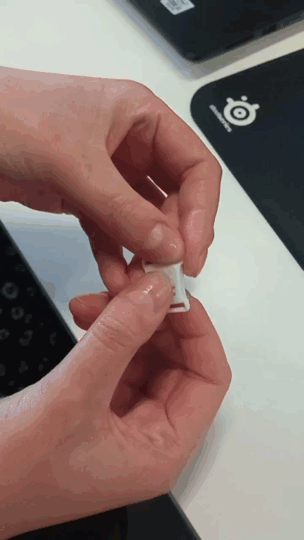

Press and hold its front side for 3 to 5 seconds and release when you see its LED blinks; 5 blinks indicate its battery is activated and ready for use.
A Nano Tag IR must be activated for use. Once activated, it has a battery life of 14 days and cannot be turned off.
-
Position the tag correctly - important to ensure Blue LED is visible during activation
Front side is facing you
Back side lettering is facing up
-
Activate the tag
Place your thumb on front bottom side and your index finger on the back side
Press and hold the back side firmly for 5 seconds.You will feel a click, indicating the activation has started.
As you press and hold, watch the front side for the Blue LED indicator flashing - this confirms its battery is being activated.
Tip
No Blue LED flash? Release and try again. Once activated, the Blue LED will no longer flash.
