When you're ready to begin deploying your Kontakt.io solution and have your Kontakt.io devices onsite, the following provides references to get started.
You'll need to configure each Portal Light with the facility's local Wi-Fi network to allow its connection to Kio Cloud and complete the Portal Light install steps from the Kio Setup Manager app.
Portal Light configure and install instructions
IMPORTANT: if your deployment includes Portal Lights, set up and install these devices first.
 |
Deployment and installation is dependent on the occupancy solution being deployed.
Room Occupancy deployment guide
Seat-Level Occupancy deployment guide
Footfall Traffic deployment guide
 |
An Asset Tag arrives powered ON.
To verify an Asset Tag is ON, press and quickly release the BLUE or RED button and verify you see its LED blink for a few seconds.
If you did not see the LED blinking, you'll need to turn it ON. Press and hold the BLUE or RED button for 5 seconds. When you see the button LED blink, it's your confirmation the tag is ON.
NOTE: continuously pressing either button may result in activating a button press event. If you do not see an LED flashing after a button press, do not press a button for 5 seconds to allow the device to clear the previous button event.
To program its two buttons to trigger excursion events (alerts), a policy is required to be created for each of its buttons. Policies are created and managed from the Kio Cloud Policy Foundry app.
 |
To program its two buttons to trigger excursion events (alerts), a policy is required to be created for each of its buttons. Policies are created and managed from the Kio Cloud Policy Foundry app.
When you receive a Smart Badge from Kontakt.io, it is powered ON and ready for use.
To verify a badge is ON, press and quickly release the BLUE or RED button and verify you see its LED blink for a few seconds.
If you did not see the LED blinking, you'll need to turn it ON. Press and hold the BLUE or RED button for 5 seconds. When you see the button LED blink, it's your confirmation the badge is ON.
NOTE: continuously pressing either button may result in activating a button press event. If you do not see an LED blink after a button press, do not press a button for 5 seconds to allow the device to clear the previous button event.
 |
When you're ready to use a Nano Tag, you'll need to power it ON.

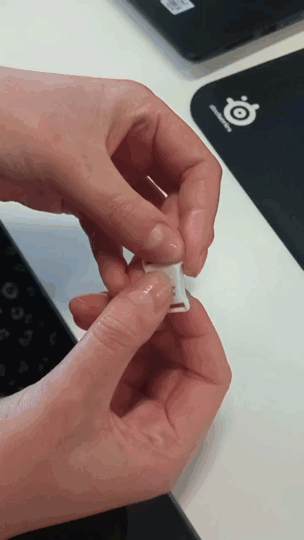

Press and hold its front side for 3 to 5 seconds and release when you see its LED blink. When its LED consecutively blinks up to 5 times, the Nano Tag is ON and ready for use.
|
 |
Once turned on, a Nano Tag has up to a 3-month battery life with the standard factory default settings (Tx power +2.5 dBm, Interval 1000 ms; 1Hz, single channel).
