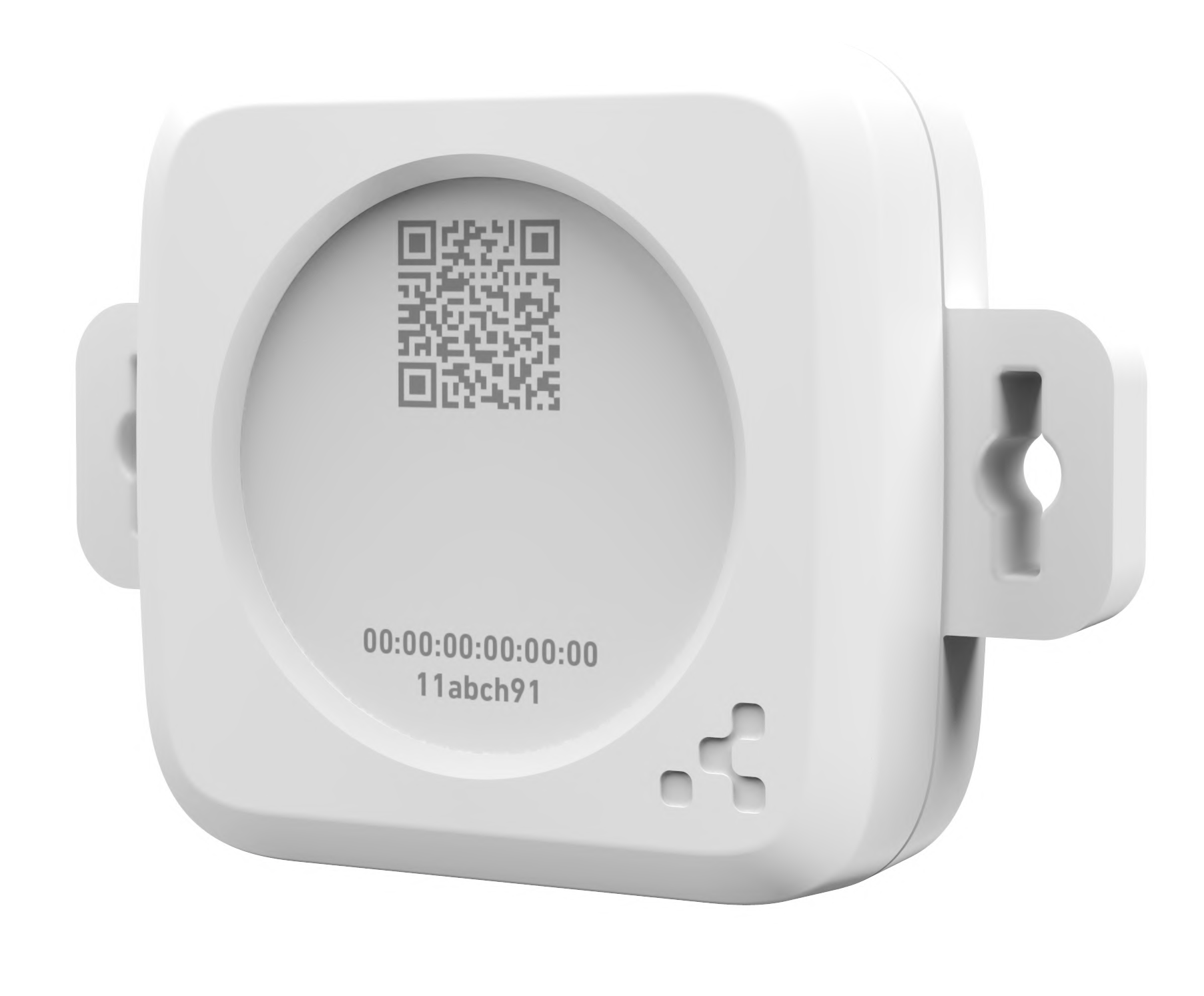

The following provides the technical specifications for the Kontakt.io Puck Beacon.
| Parameter | Specification |
|---|---|
| Physical | Height: 0.8 in (20.5 mm) Diameter: 1.9 in (50 mm) Weight: 1.5 oz (45 g) | 2.5 oz (73 g) with mounting bracket Casing IP rating: IP67 Casing housing: Tough epoxy-sealed; protects internal components from impact, vibration, and tampering Product identification: QR code, MAC address, Unique ID Mounting method: Mounting tape, roll-cage mounting bracket |
| Environmental | Operating temperature: -40°F to 185°F (-40°C to 85°C) Storage temperature: 23°F to 95°F (-5°C to 35°C) Operating humidity: 0% to 95% RH (non-condensing) Storage humidity: 5% to 95% RH (non-condensing) Storage shelf life: 2 years |
| Battery Power | Battery life: Up to 8 years; factory default configuration Battery type: ER14250; 3.6V ½ AA Number of batteries: 2 Total capacity: 2400 mAh Replaceable: No Activation: Factory-activated |
| Bluetooth Low Energy Radio | Wireless standard: Bluetooth LE 5.0 Range: Up to 229 ft (70 m) in open space Receiver sensitivity: -93dBm Available transmission power level: 0 (-30dBm), 1 (-20dBm), 2 (-16dBm), 3 (-12dBm), 4 (-8dBm), 5 (-4dBm), 6 (0dBm), 7 (4dBm) Supported data packets: Kontakt.io Telemetry and Location, iBeacon, Eddystone |
| Sensors | Accelerometer: Type: 3-axis MEMS accelerometer. Selectable measurement ranges: ±2 g, ±4 g, ±8 g, ±16 g. Output Data Rate (ODR): 1 Hz to 5.3 kHz |
| Certifications | CE, FCC, UKCA, RoHS, REACH, IC, RCM |
Configurable parameters
Bluetooth LE parameters
| Parameter | Factory default* | Configurable |
|---|---|---|
| BLE packets | Kontakt.io Telemetry, Location, iBeacon | Yes; Kontakt.io Telemetry, Location, iBeacon, Eddystone |
| BLE interval | 1000ms | Yes |
| BLE name | Kontakt | Yes |
| iBeacon major, minor, UUID | Random | Yes; custom request |
| TX power | -4 dBm | -20 to +4 dBm |
* Custom or use-case configurations can be requested at the time of order placement.
