Kio Cloud Smart Location displays the basic real-time data for your Kontakt.io devices. From the interactive floor plans, you can also dive deeper into the data both at the floor and room level.

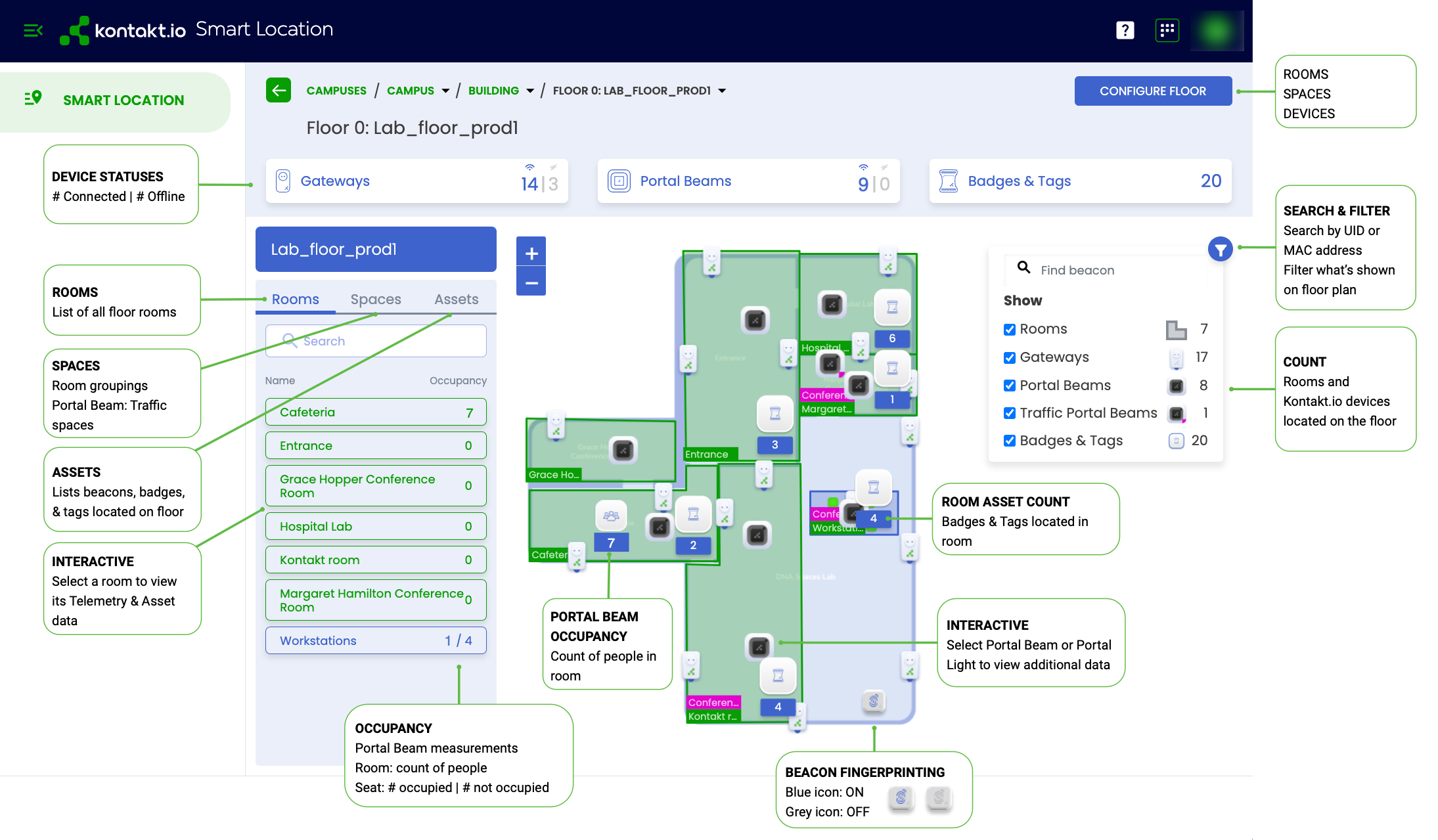

Each floor provides the following real-time data.
-
Portal Beam room occupancy: count of people detected in each room
-

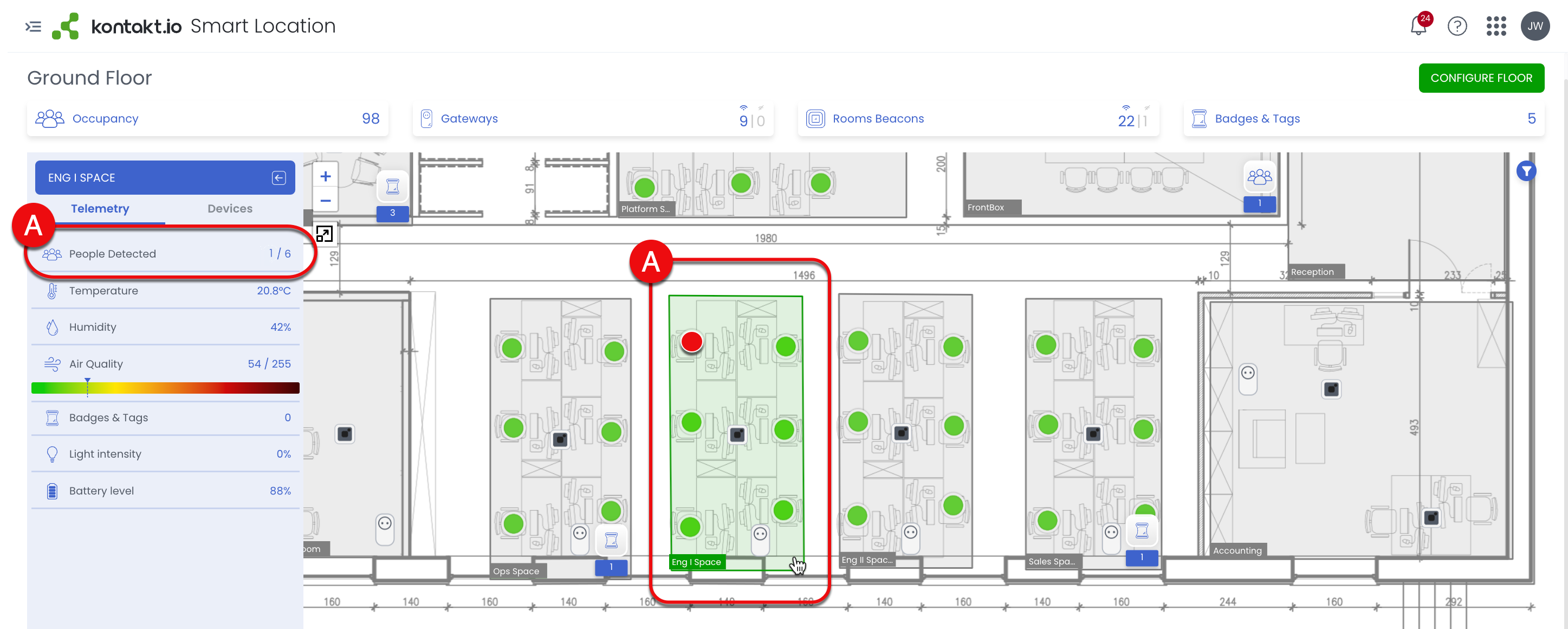

Portal Beam seat occupancy: count of seats occupied and those that are not occupied.
-
Traffic Portal Beam count (Space): continuously counts people entering and exiting a Space.
-

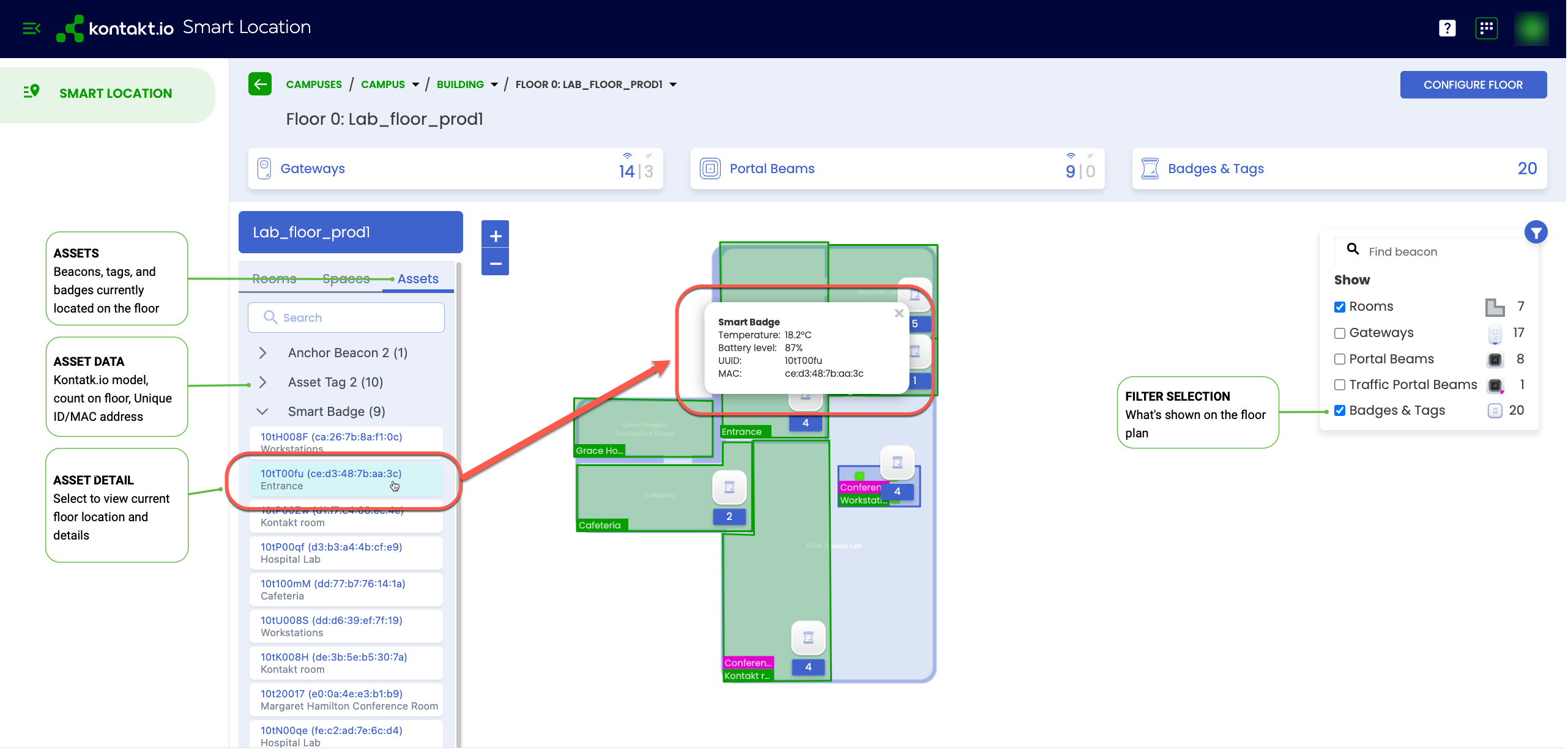

Device locations: current Kontakt.io beacons, badges, and tags located on the floor.
-
Device infrastructure: device statuses, device counts, and install locations of Portal Beams, Traffic Portal Beams, Portal Lights, and Reference Beacons (stationary mounted beacons - Anchor Beacon 2).
Each room provides the following real-time data. In addition, the floor plan provides the same details and features described in the floor level section above.
-

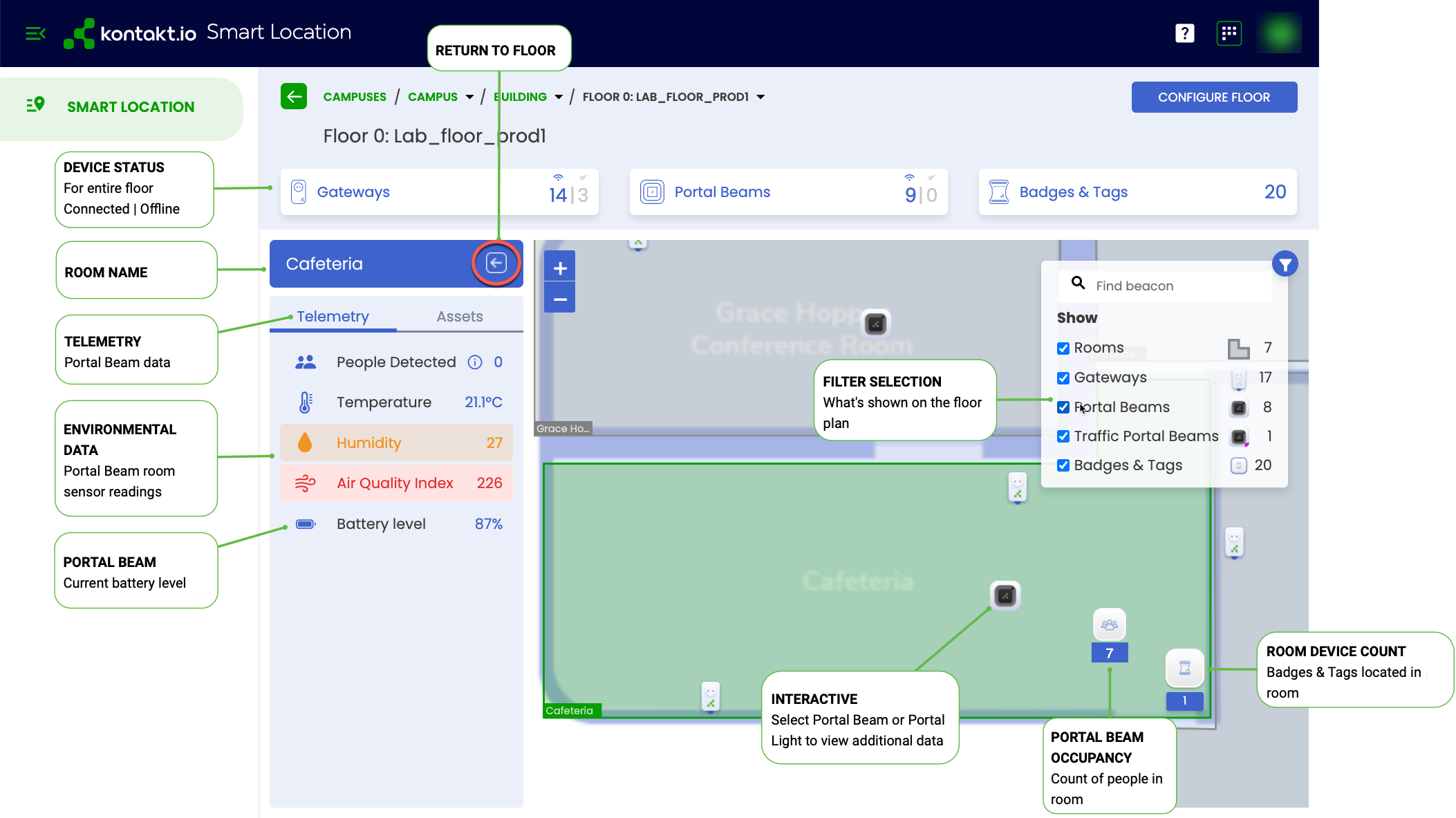

Portal Beam Telemetry: includes environmental readings and battery level.
-

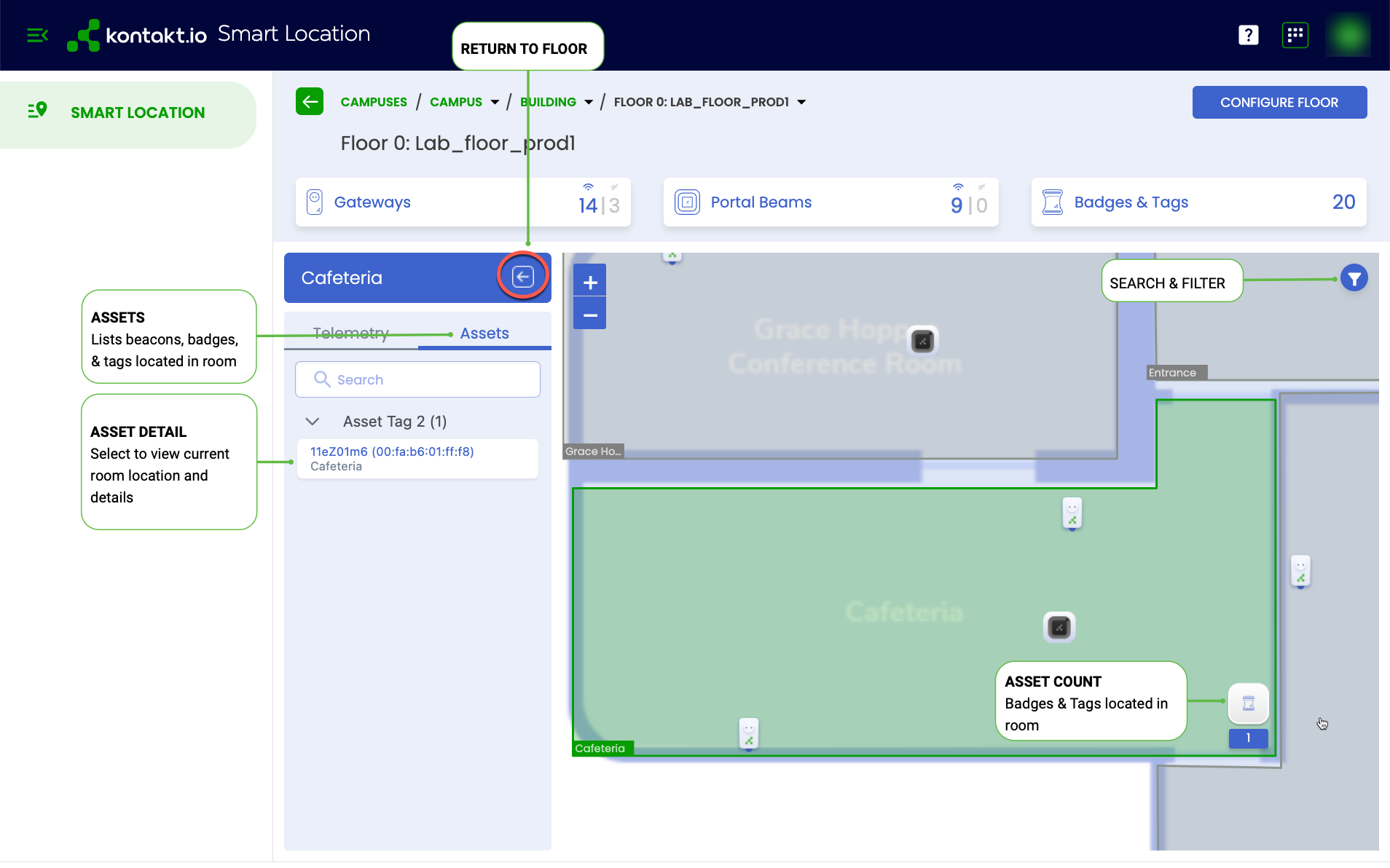

Devices: current Kontakt.io BLE beacons, badges, and tags located in the room.
