A Kontakt.io Beam Mini can be mounted to a ceiling or wall using either of the following three methods.

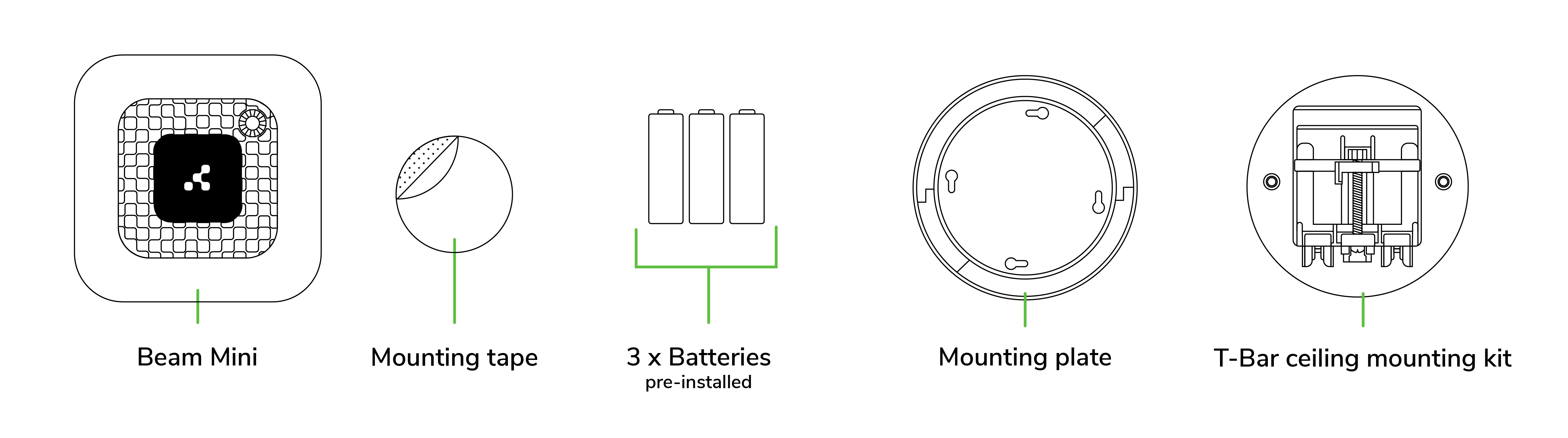

A Kontakt.io Beam Mini is supplied with 3M double-sided mounting tape, T-Bar ceiling mounting kit, mounting screws and anchors, and pre-installed batteries.

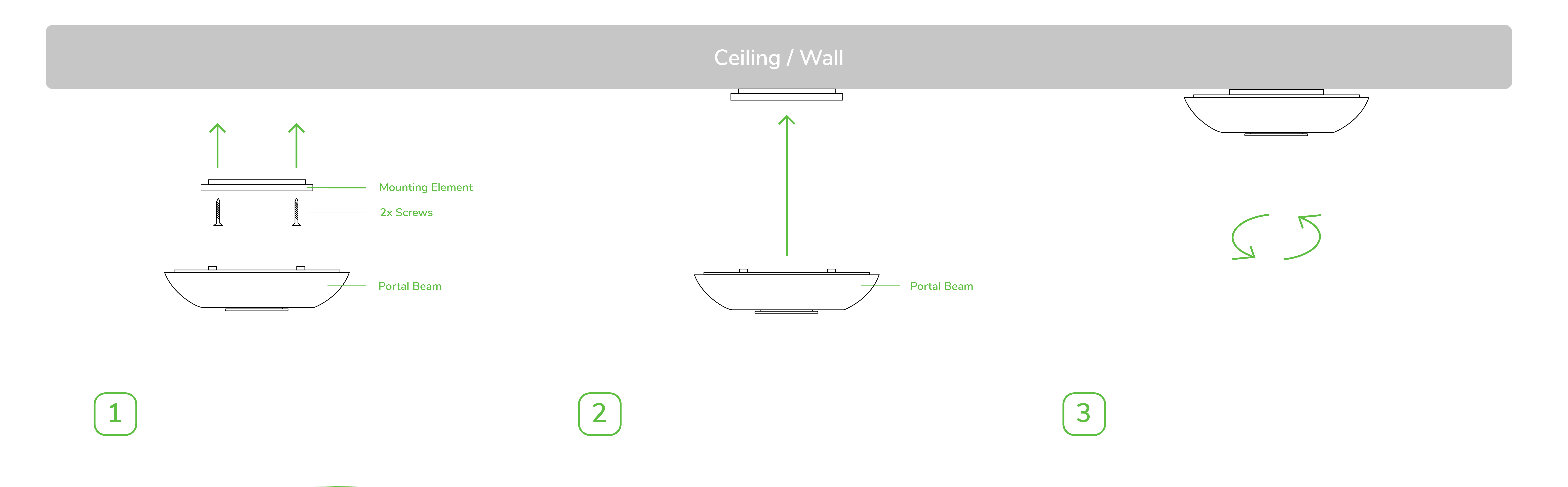

Mounted to the ceiling or wall using the supplied screws, anchors, and mounting plate.
-
Drill two mounting holes into the ceiling or wall and insert supplied anchors.
-
Place the mounting plate against the ceiling or wall and fasten it to the ceiling with the supplied screws.
-
Place the Beam Mini into the mounting plate and rotate gently to lock it.
Click image to enlarge
Mounted with a t-rail mount to a suspended ceiling.
-
Put all kit elements together.
-
Lock the t-rail to the suspended ceiling bar.
-
Screw standard mount to t-rail mount.
-
Place the Beam Mini into the standard mount and rotate gently to lock it.
Click image to enlarge
Warning
Recommended for use if the plate mount or T-bar ceiling mount cannot be performed or for use during a short-term mounting placement.

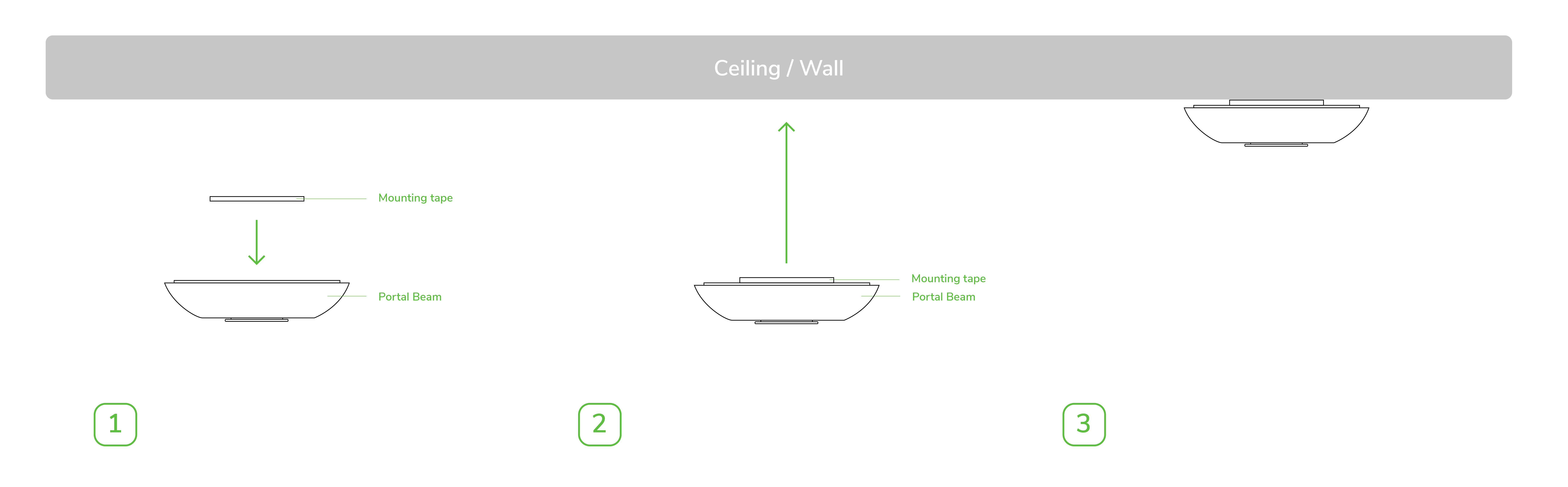

Mounted directly to the ceiling or a wall using the supplied 3M double-sided mounting tape.
-
Peel one side of mounting tape and affix it to the backside of the mounting plate.
-
Peel the other side of the mounting tape and affix it to the ceiling surface.
-
Align the mounting plate tape to the ceiling tape and press to secure.
-
Place the Beam Mini into the mounting plate and rotate gently to lock it.
