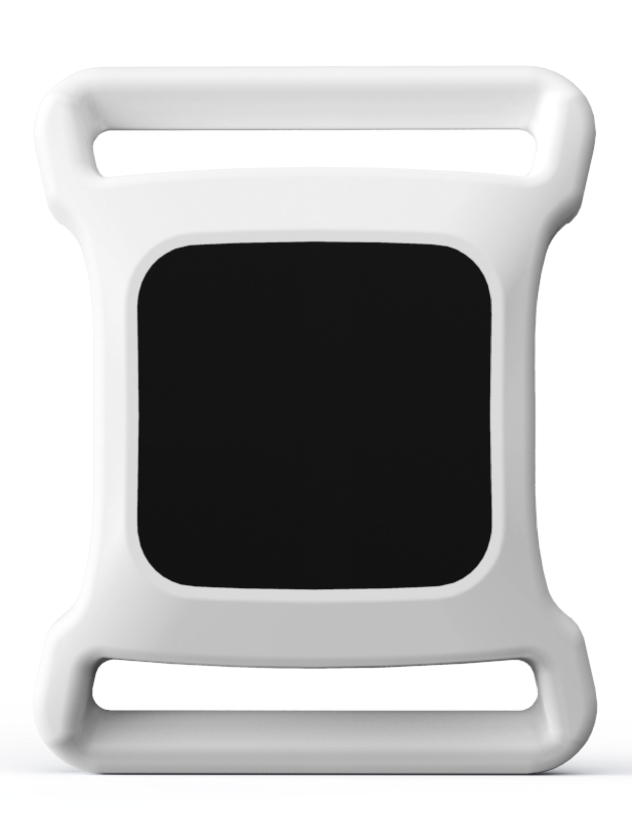

The following provides the technical specifications for the Kontakt.io Nano Tag IR.
| Parameter | Specification |
|---|---|
| Physical | Height: 1.25 in (32 mm) Width: 0.98 in (25 mm) Depth: 0.23 in (6 mm) Weight: 0.14 oz (4 grams) Casing IP rating: IP67 Visual status indicator: Blue LED; 5 blinks on power on Mounting: Wearable; compatible with wristbands up to 3/4 in (19 mm) wide, threaded through the two mounting slots Product identifier: QR code, MAC address |
| Environmental | Operating temperature: 41ºF to 104ºF (5°C to 40°C) Storage temperature: 59ºF to 77ºF (15°C to 25°C) Operating humidity: 10%-95% RH (non-condensing) Storage humidity: 5%-95% RH (non-condensing) Storage shelf life: 1 year |
| Battery Power | Battery life: Up to 14 days with IR and factory default configuration Battery type: Silver oxide battery; disposable, non-toxic, medically safe Number of batteries: 1 Replaceable: No Power activation: Press and hold the backside for 3 seconds — 5 blue LED blinks confirms power activation |
| Bluetooth Low Energy (LE) Radio | Wireless standard: Bluetooth LE 5.1 Range: Up to 164 feet (50 meters) in open space Receiver sensitivity: -93 dBm Transmission power level: +2.5 dBm Supported data packets: Kontakt.io Telemetry and Location, iBeacon, Eddystone Broadcast only (non-connectable) |
| Sensor | IR (Infrared) sensor: 56KHz, ultra-low noise |
| Certification | CE, FCC, WEEE, Reach & RoHS |
Configurable parameters
Bluetooth LE parameters
| Parameter | Factory default | Configurable* |
|---|---|---|
| BLE packets | Kontakt.io Location | Yes; Kontakt.io Telemetry, Location, iBeacon, Eddystone |
| BLE interval | 1000 ms | Yes |
| BLE name | Kontakt | Yes |
| iBeacon major, minor, UUID | Random | Yes; custom request |
| TX power | +2.5 dBm | -20 to +4 dBm |
IR parameters
| Parameter | Factory Default | Configurable* |
|---|---|---|
| IR receiving interval | 6s | No |
*Non-connectable device. Custom or use-case specific configuration must be requested at the time of order placement.
