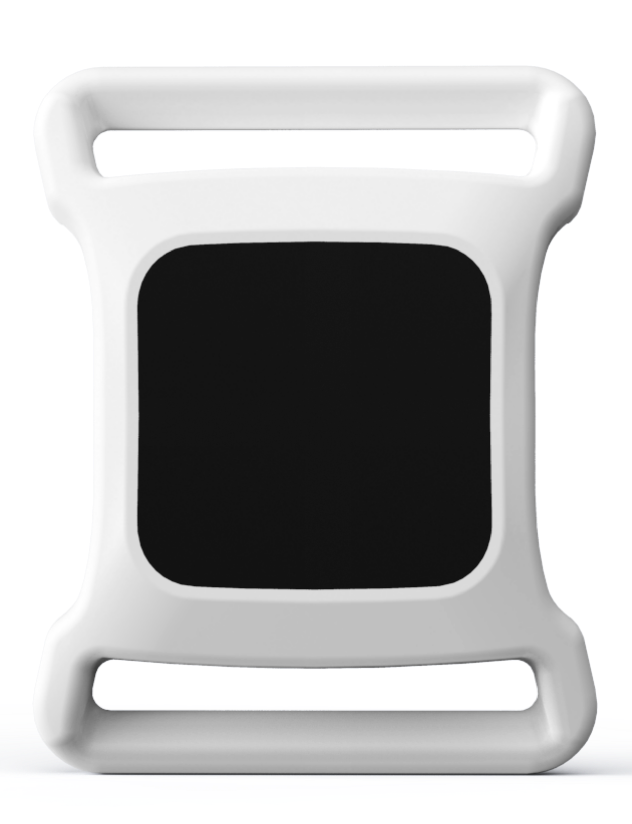

Nano Tag technical specifications

Physical

Height: 1.25 in (32 mm)

Width: 1.02 in (26 mm)

Depth: 0.23 in (6 mm)

Weight: 0.14 oz (4 grams)

Casing IP rating: IP67

Visual status indicator: Blue LED; 5 blinks on power on

Mounting: Wearable: compatible with narrow healthcare wristbands up to 1/2 in (13 mm) wide, threaded through the two mounting slots

Product identifier: QR code, MAC address, Unique ID

Environmental

Operating temperature: 41ºF to 104ºF (5°C to 40°C)

Storage temperature: 59ºF to 77ºF (15°C to 25°C)

Operating humidity: 10% to 95% RH, non-condensing

Storage humidity: 5% to 95% RH, non-condensing

Storage shelf life: 1 year

Battery Power

Battery life: Up to 30 days with factory default configuration

Battery type: Silver oxide battery; disposable, non-toxic, medically safe

Number of batteries: 1

Replaceable: No

Power activation: Long press backside (3s) to power on

Bluetooth Low Energy (LE) Radio

Wireless standard: Bluetooth LE 5.1

Range: Up to 164 feet (50 meters) in open space

Receiver sensitivity: -93 dBm

Transmission power level: +2.5 dBm

Supported data packets: Kontakt.io Telemetry and Location, iBeacon, Eddystone

Broadcast only (non-connectable)

Certification

CE, FCC, WEEE, Reach & RoHS
