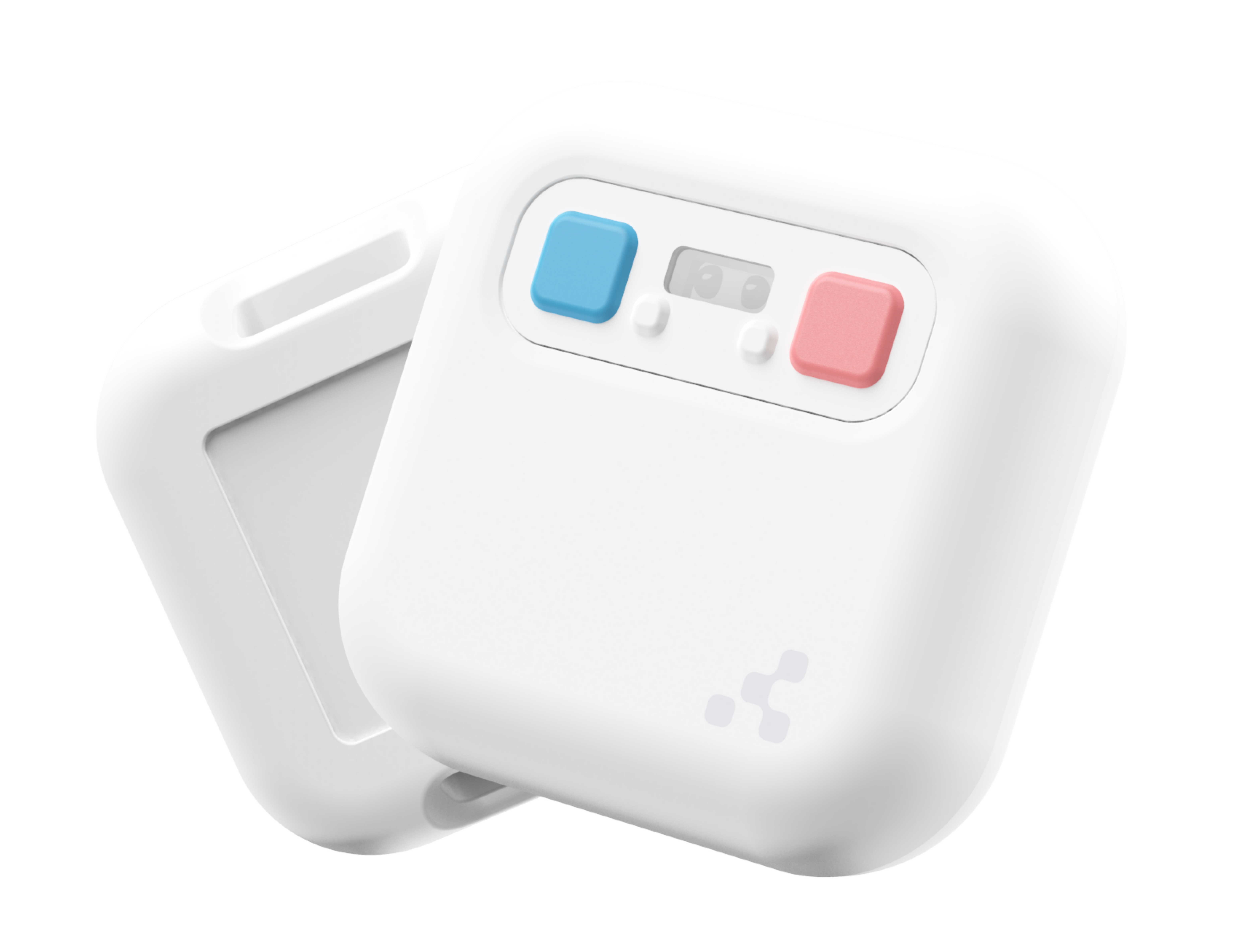

The following details the specifications of a Kontakt.io Asset Tag 2.
Dimensions |
Height |
1.9 in (49 mm) |
Width |
1.9 in (49 mm) |
|
Depth |
0.5 in (15 mm) |
|
Electronics |
Microcontroller |
nRF52832 |
Connectivity |
Bluetooth |
BLE 5.0 |
Range |
Up to 164 feet (50 meters) |
|
Available transmission power levels |
-20 to +4 dBm |
|
Sensitivity |
-96dBm |
|
Communication |
Over-the-Air (OTA) |
|
Battery and power |
Battery operating mode |
RGB LEDs signalling device state |
Model |
ER14250 (1.2 Ah) |
|
Total capacity |
2400mAh |
|
Number of batteries |
2 |
|
Replaceable |
No |
|
Operating temperature range |
-140°F to 185°F (-60°C to +85°C) |
|
Battery life |
Minimum 4 years with Kontakt.io Location Engine 8 years battery life in indoor environments (TX power 3, Interval 1000 ms, IR disabled) |
|
Activation |
On/off button |
|
Sensors |
Motion sensor |
3DH sensor (LIS3DH) |
Button |
Lexan keyboard connection type |
FPC connector is mounted on PCB to accept flat cable from Lexan keyboard LED and buttons are part of Lexan keyboard |
Functionalities |
BLE broadcasting Infrared (IR) IR receiving standard (TSOP95456TT) Accelerometer (motion sensing) |
|
Casing |
Material |
PC-550k (V0 anti-flammable) |
Colors |
off white, RAL 9003 |
|
Protection |
IP 67 |
|
Mounting |
Slot for ZIP ties, double-sided tape |
|
Antibacterial surface |
Yes; Antibacterial and UV resistant |
|
Environmental requirements |
Operational temperature |
-77°F to 185°F (-25°C to +85°C) |
Humidity |
Non-condensing |
|
Beacon standards |
Packet type |
Compatibility |
iBeacon |
Yes |
|
Eddystone |
Yes |
|
Kontakt.io Secure Profile |
Yes |
|
Telemetry |
Yes |
|
Kontakt.io Location |
Yes |
|
Certification |
CE/FCC/RoHS/REACH/IC/UKCA |
|
Product identification |
QR code |
MAC address |
