Portal Light 2 IR technical specifications

Physical

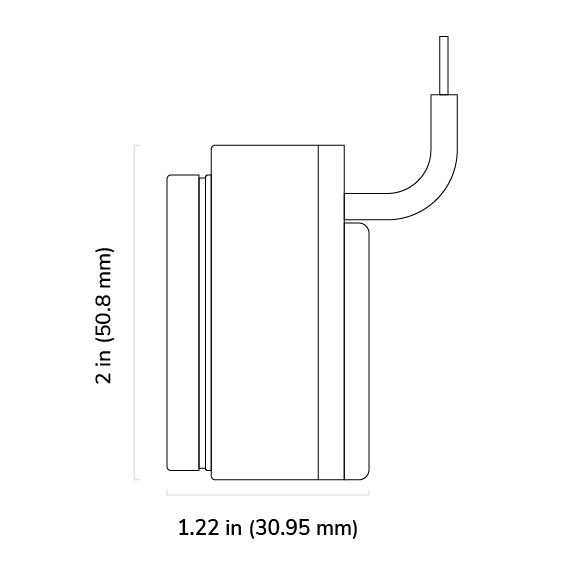

Height: 2 in (50.8mm)

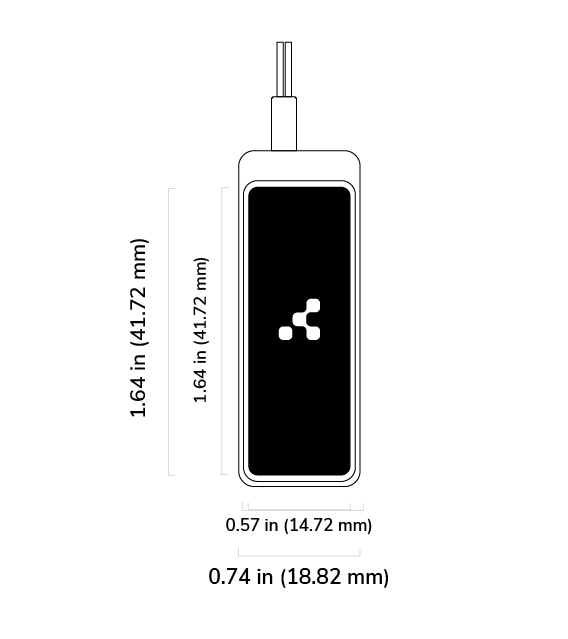

Width: 0.74 in (18.82mm)

Depth: 1.22 in (30.95 mm)

PCB dimensions: 0.4 x 0.4 in (12 x 12 mm)

Weight: 0.9 oz (26 grams) with standard cabling

Casing: IP 65; UL 94 VO

Mounting: F1 socket

F1 socket compatibility: Signify Luminaire-based brackets SA0200/05 and SA0200/15 for 60x22mm F1 Luminaire slot. Signify Luminaire-based brackets SA0100/05 for 44x17mm F1 Luminaire slot. Signify Ceiling-clips SA0600 and SA0500

Visual status indicator: Illuminate during power-on

Product identification: MAC address (printed), Unique ID

IP protection: IP 65

Environmental

Operating temperature: 14°F to 149°F (10°C to 65°C)

Storage temperature: -4°F to 185°F (-20°C to 85°C)

Operating humidity: 10%-95% RH (non-condensing)

Storage humidity: 5%-95% RH (non-condensing)

Electrical Power

Input voltage range: 4.75V to 28V DC

Minimum continuous current supply: 5V: 250mA | 12V: 54mA | 24V: 50mA

Protection: reverse polarity

Power connection:

Wi-Fi Radio

Wireless networking: IEEE 802.11 a/b/g/n

Frequency range: 2.4GHz and 5GHz

Security: WEP, WPA™/ WPA2™ PSK, WPA2 Enterprise (EAP-TLS, EAP-TTLS, PEAPv0), WPA3™ Personal

Network communication: Hypertext Transfer Protocol Secure (HTTPS)/TLS 1.2

IP addressing: Dynamic Host Configuration Protocol (DHCP)

Data packet size: Typically less than 6 kilobytes (kB) per second

Bluetooth Low Energy (LE) Radio

Wireless standard: Bluetooth LE 5.0 and 5.3 compatible

Range: Up to 98 feet (30 meters)

Output power: 8 dBm

Frequency range: 2.402GHz -2.480GHz

Work mode: Central and Peripheral

IR (Infrared) Transmitter

Emitters: 4x 940 nm IR LED blasters

Coverage area: 172 sq ft (16 sq m); installed height 9.8 ft (3 m)

Minimum install height: 7.8 ft. (2.4 m)

Maximum install height: 16.4 ft (5 m)

Certification

CE, UKCA, FCC, IC (ISED), WEEE, Reach & RoHS
