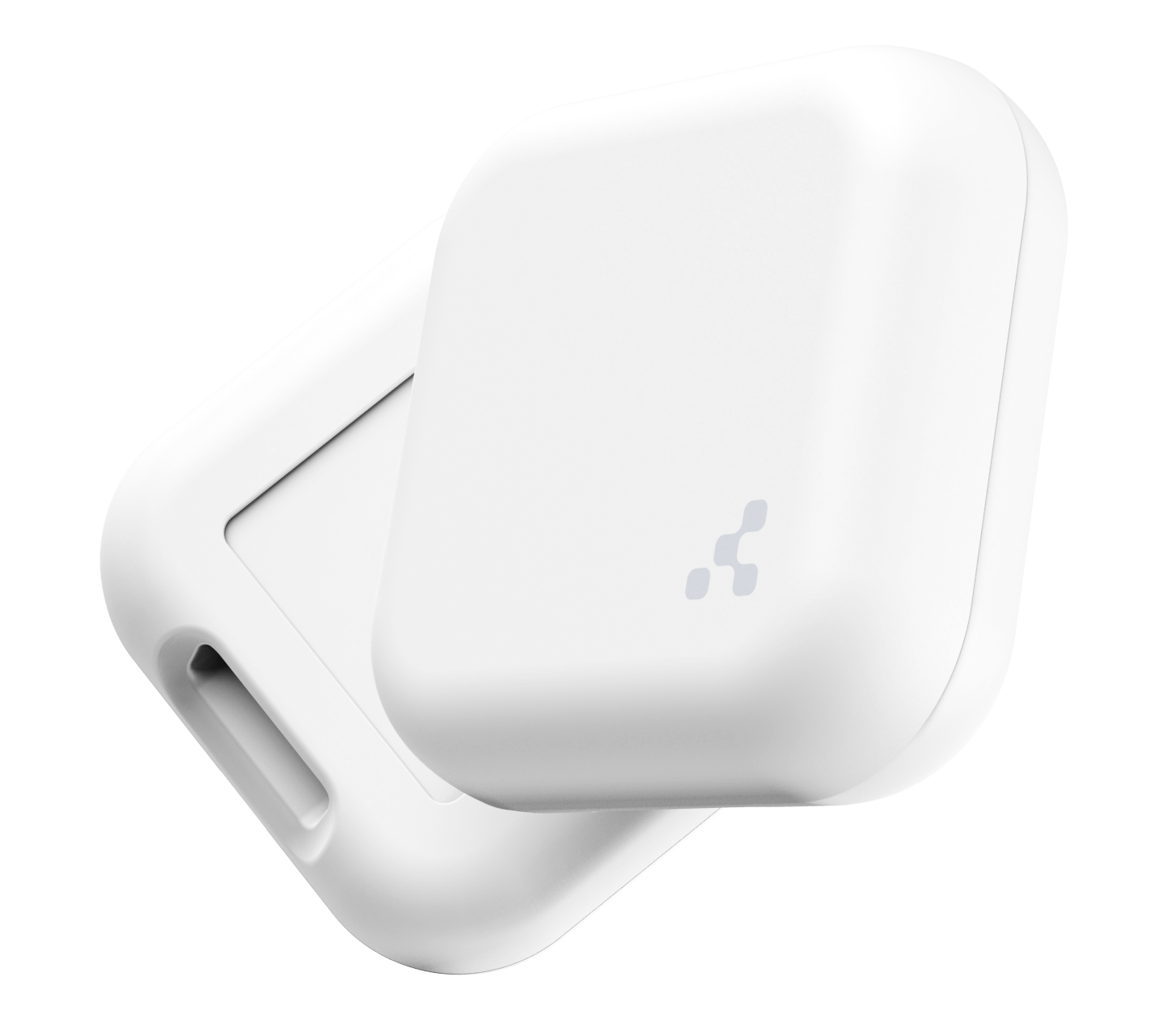

The following provides the technical specifications for the Kontakt.io Anchor Beacon 2.
Parameter |
Specification |
---|---|
Physical |
Height: 1.9 in (49 mm) Width: 1.9 in (49 mm) Depth: 0.5 in (15 mm) Weight: 1.3 oz (39 g) Casing: IP 52 Mounting: Backside slots for zip-tie attachment, double-sided tape Product identification: QR code, MAC address |
Environmental |
Operating temperature: -77°F to 185°F (-25°C to +85°C) Storage temperature: -4°F to 185°F (-20°C to 85°C) Operating humidity: 10% - 95% RH (non-condensing) Storage humidity: 5% - 95% RH (non-condensing) |
Bluetooth Low Energy Radio |
Wireless standard: Bluetooth LE 5.0 Range: Up to 328 feet (100 meters) Available transmission power level: -20 to +4 dBm Sensitivity: -96dBm Supported data packets: Kontakt.io Secure Profile, Telemetry, and Location, iBeacon, Eddystone |
Battery Power |
Battery life: Up to 8 year battery life in indoor environments (TX power 3, Interval 1000 ms) Battery: Two ER14250 lithium manganese dioxide batteries (1.2 Ah) Total capacity: 2400mAh Replaceable: Yes Activation: Battery separator |
Sensors |
Temperature sensor range: -40°F to 185°F (-40°C to +85°C) Temperature accuracy: ±9 °F (±5 °C) (typically ±4.5 °F [±2.5 °C] near room temperature) |
Features |
Bluetooth Low Energy (LE) broadcasting and scanning Ambient Temperature Sensor Remote device management Over-the-air (OTA) firmware and configuration updates Power saving capabilities |
Certification |
CE/FCC/RoHS/REACH/IC/UKCA |
Bluetooth LE parameters
Parameter |
Factory default* |
Configurable |
---|---|---|
BLE packets |
Kontakt.io Location, iBeacon |
Yes; Kontakt.io Telemetry, Secure Profile, and Location, iBeacon, Eddystone |
BLE interval |
1000ms |
Yes |
BLE name |
Kontakt |
Yes |
iBeacon major, minor, UUID |
Random |
Yes; custom request |
TX power |
-12 dBm |
-20 to +4 dBm |
Sensor parameters
Parameter |
Factory default* |
Configurable |
---|---|---|
Temperature |
Off |
Yes; on/off via Telemetry packet |
* Custom or use-case configurations can be requested at the time of order placement.
