A Beam Mini 2 a multi-function room sensor that delivers IR beaconing for Real-time Location System (RTLS) solutions, indoor temperature monitoring, and the infrastructure to support mobile indoor navigation.
General placement guidelines
In some cases, obstructions or other conditions may require a Beam to be mounted outside these guidelines.
When there is a deviation from these guidelines, consult with your Kontakt.io representative or submit a request to our support team for additional recommendations.
For optimal coverage and accuracy, mount at its maximum height of 10.6 ft (3.25 m) and do not mount below its minimum install height of 8.2 ft (2.5 m). Mounting above or below this range will affect the its coverage area and accuracy.
Must have an unobstructed view of the spaces. Do not mount where tall cabinets, hanging light fixtures, or other large stationary objects would obstruct its coverage area.
Place at least 4 to 6 ft (1.2 to 1.8 m) away from heat sources, including supply vents, lighting or large stationary fixtures, windows, and other electronic stationary devices.
Avoid mounting in the direct path of HVAC airflow ducts/vents or other heat sources.
Avoid mounting directly above an area where the sun heats the floor, near glass doors, or in the path of direct sunlight.
Ceiling mount placement guidelines
Mount in the center of the room or space being monitored.

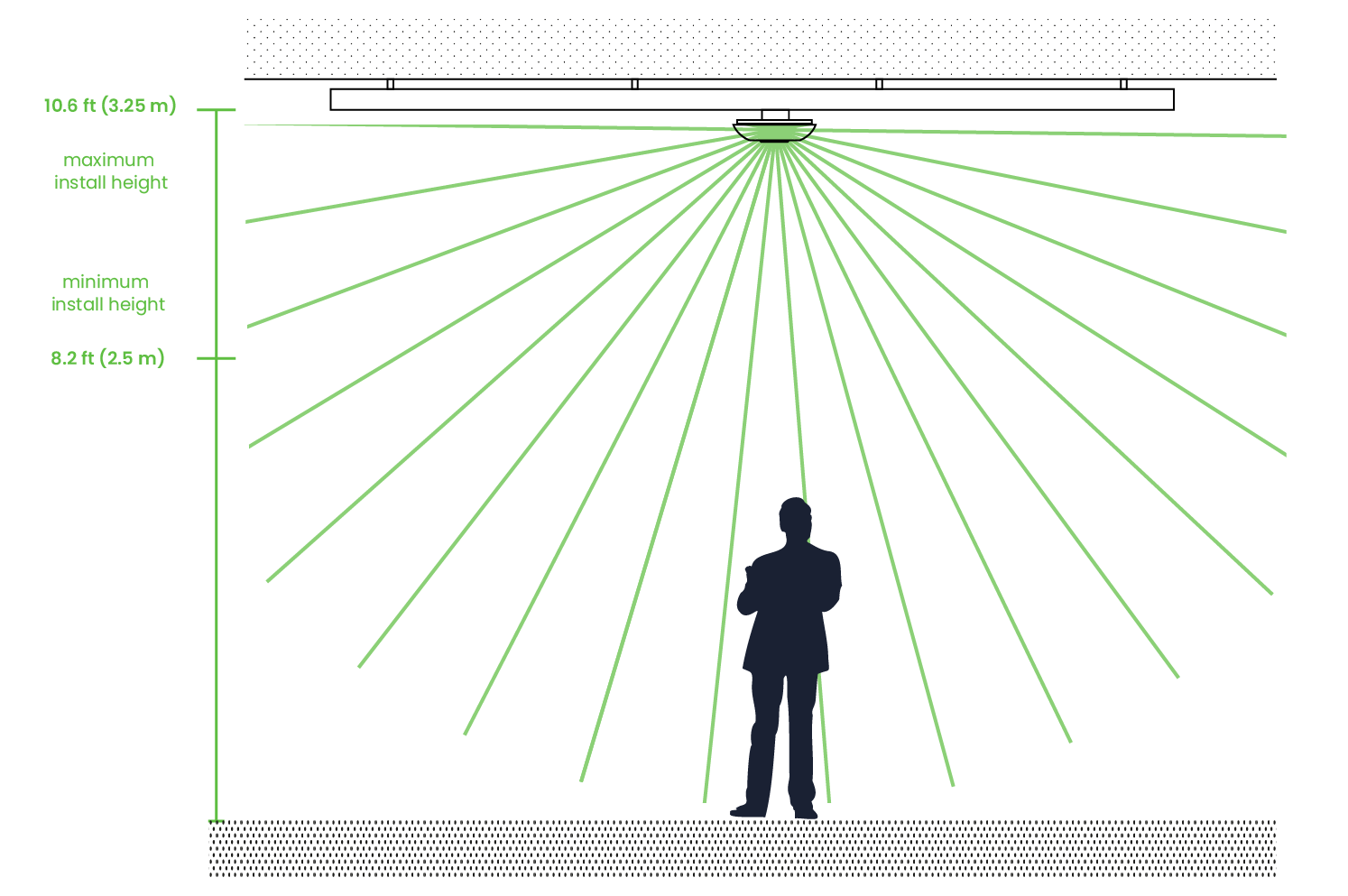

Mount horizontally; facing downward into the space (room).
IMPORTANT: Ensure its mounting location does NOT have a clear line-of-sight from the corridor (hallway) leading into the room. For example, if you are standing in corridor directly outside of the room, the Beam Mini 2 should NOT be visible.
Wall mount placement guidelines
The ideal placement is above the center of door leading into the space (room).

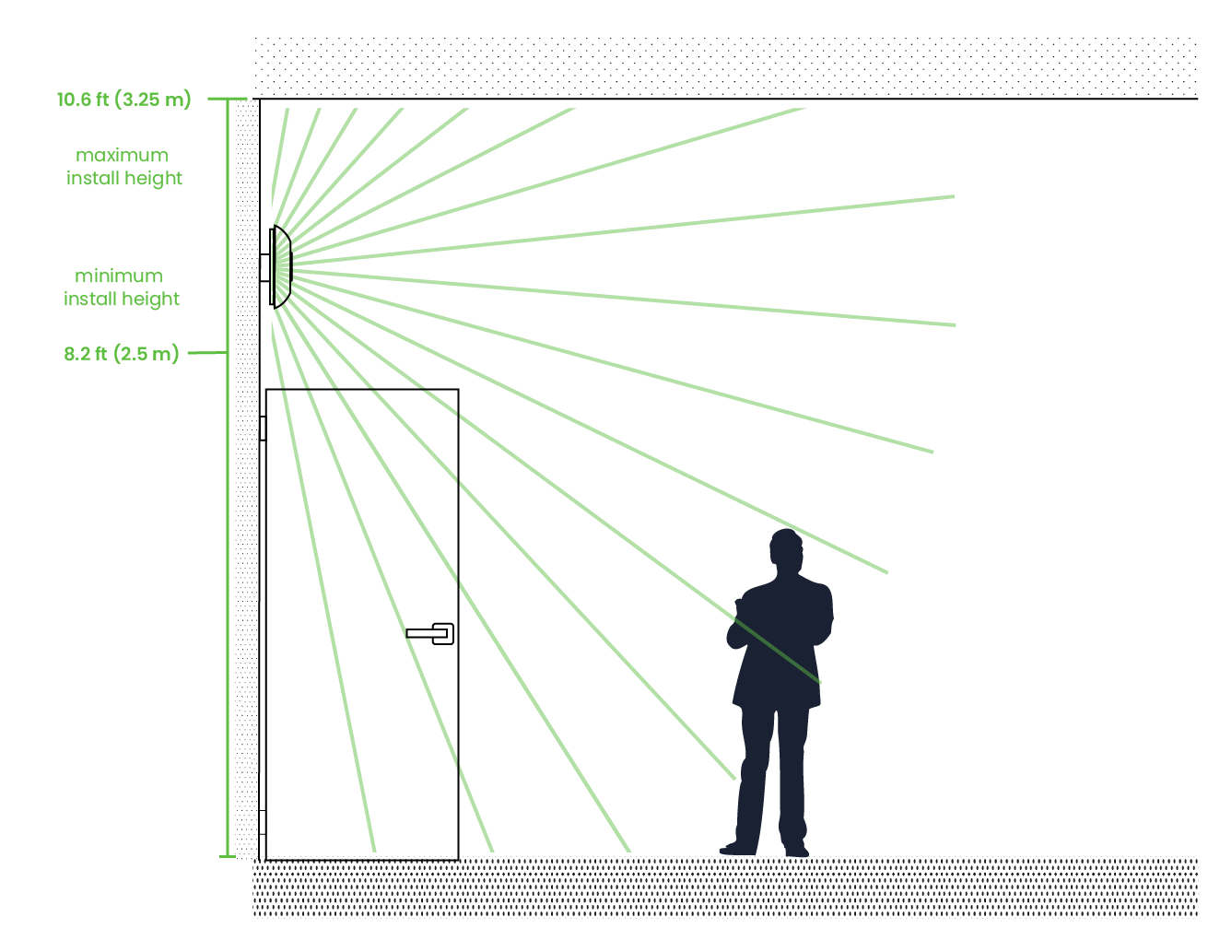

Mount vertically; facing into the space (room).
Do not mount behind any obstacles like signage or decorations.
Corridor (hallway) placement guidelines
Ceiling mount; recommended distance of 25 ft (8 m) between each Beam Mini 2.
Do not mount in front of a room door/entryway.
Coverage area specifications
By understanding the coverage area of a Beam Mini 2, you can determine how many devices are needed and where they should be placed to ensure complete coverage of the intended space.
With a Deployment Topology with a Beam Mini 2 (room sensor) and Portal Light in every room, you can achieve 99.99% room-level certainty. Learn more.

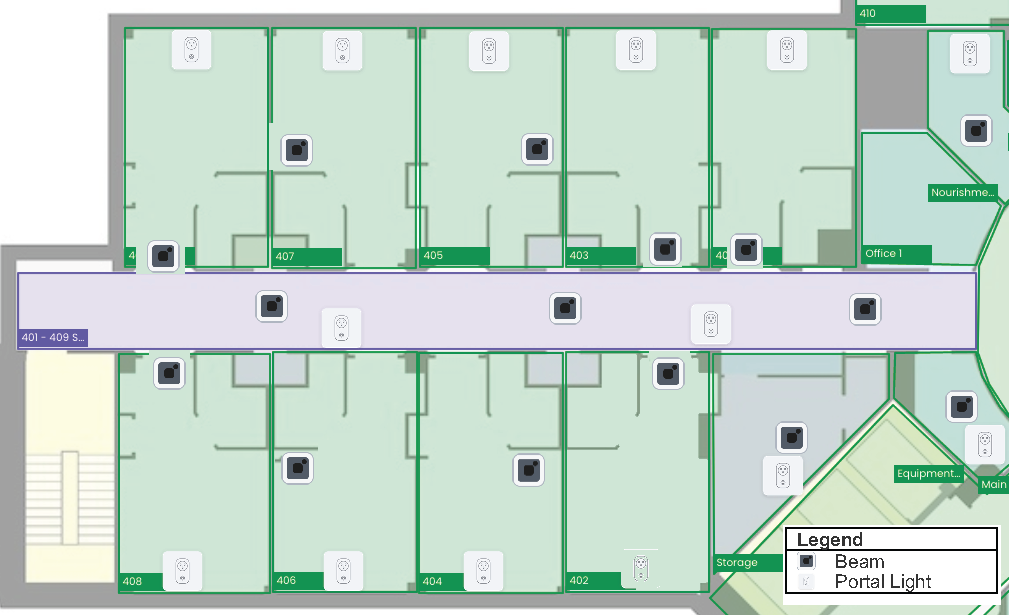

Example: Room Sensors and Portal Lights in every room

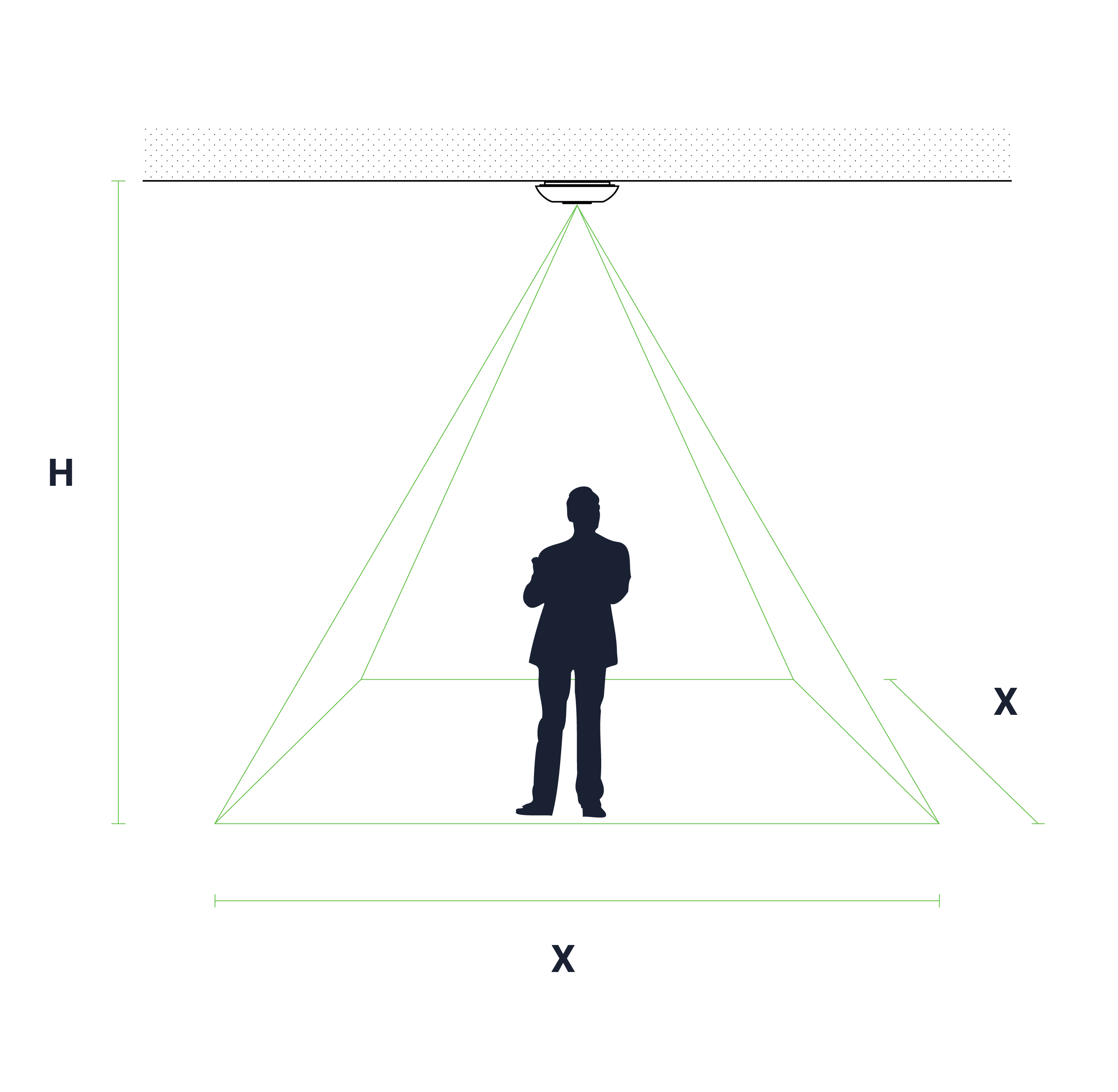

The following table provides the Beam Mini 2 coverage area specifications. The ceiling height of the mounting location impacts the coverage area.
| Ceiling Height (H)* | Coverage Area** | Square Size (X) |
|---|---|---|
| 8.2 ft (2.5 m) | 257 ft2 (24 m2) | 16 ft x 16 ft (4.9 m x 4.9 m) |
| 9.0 ft (2.75 m) | 298 ft2 (28 m2) | 17.3 ft x 17.3 ft (5.3 m x 5.3 m) |
| 9.8 ft (3 m) | 342 ft2 (32 m2) | 18.5 ft x 18.5 ft (5.6 m x 5.6 m) |
| 10.6 ft (3.25 m) | 527 ft2 (49 m2) | 23 ft x 23 ft (7 m x 7 m) |
* do not mount below the minimum install height of 8.2 ft (2.5 m) or above the allowed maximum height of 10.6 ft (3.25 m).

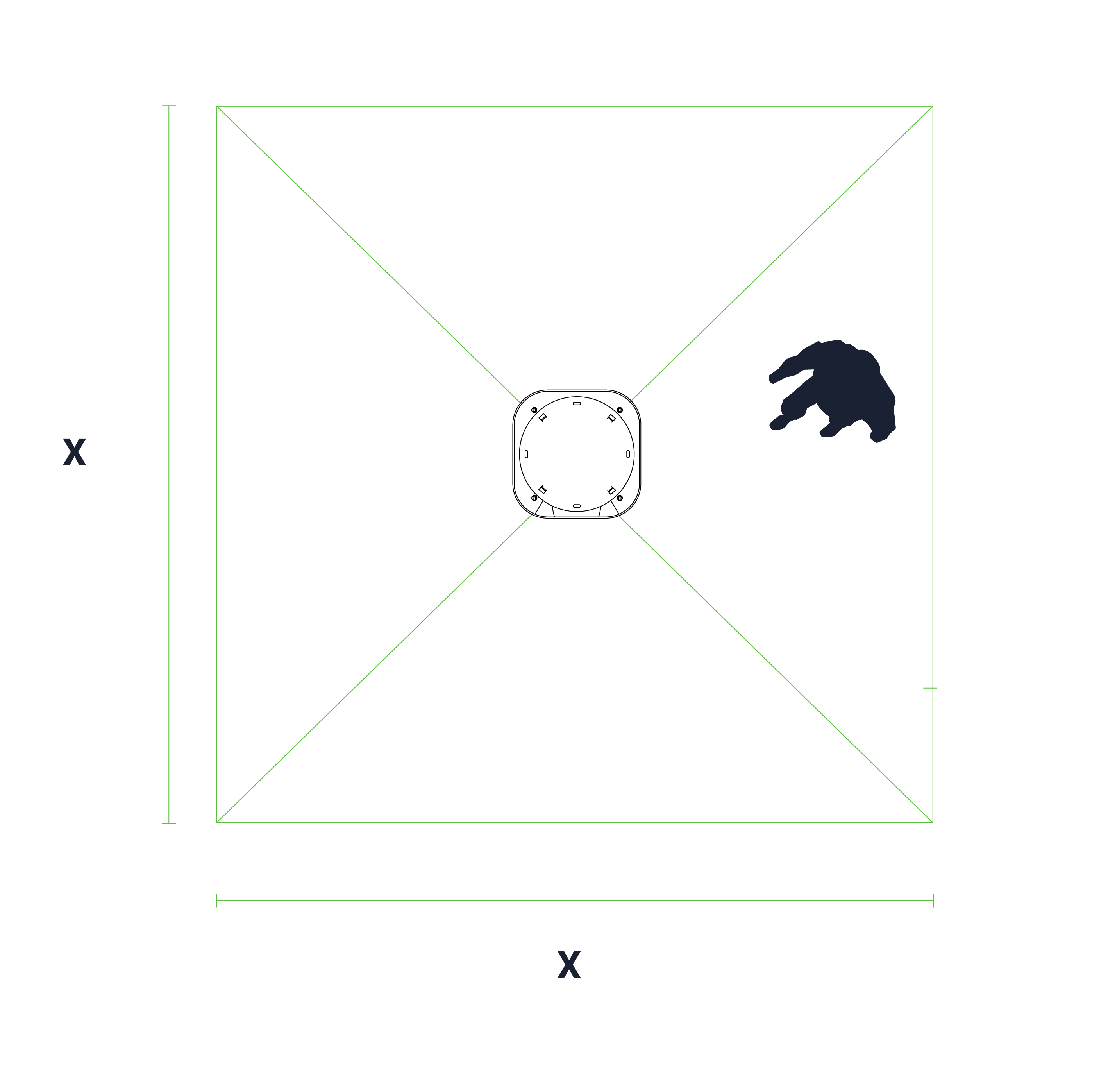

The below images illustrate the Beam Mini 2 coverage area.
