A Kontakt.io Beam Mini 2 can be mounted to a ceiling or wall using either of the following three methods.

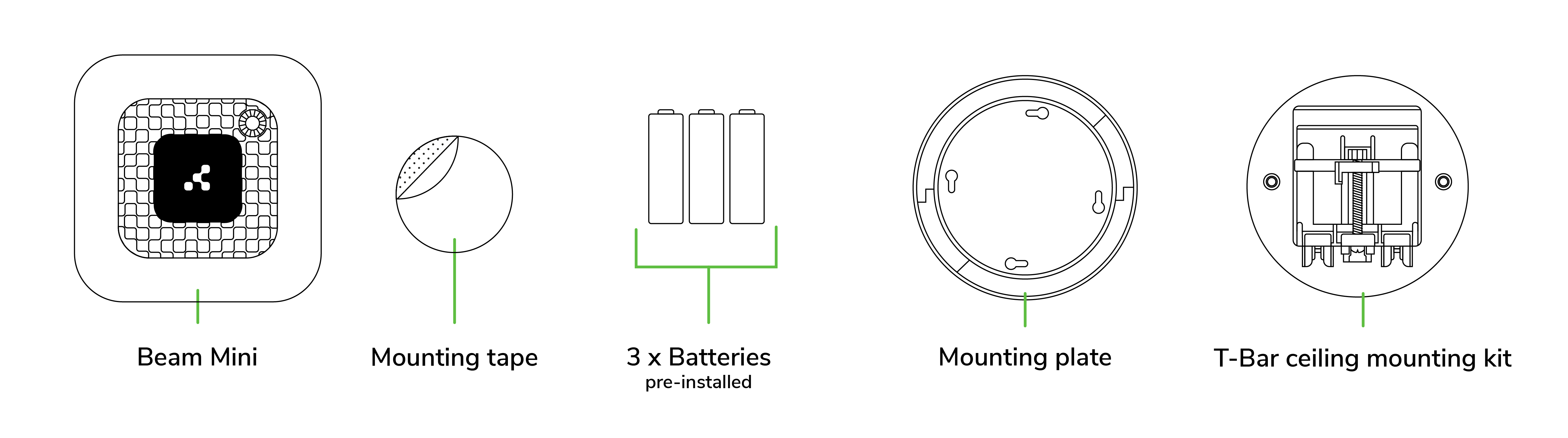

What's in the box
A Kontakt.io Beam Mini 2 is supplied with 3M double-sided mounting tape, T-Bar ceiling mounting kit, mounting screws and anchors, and pre-installed batteries.

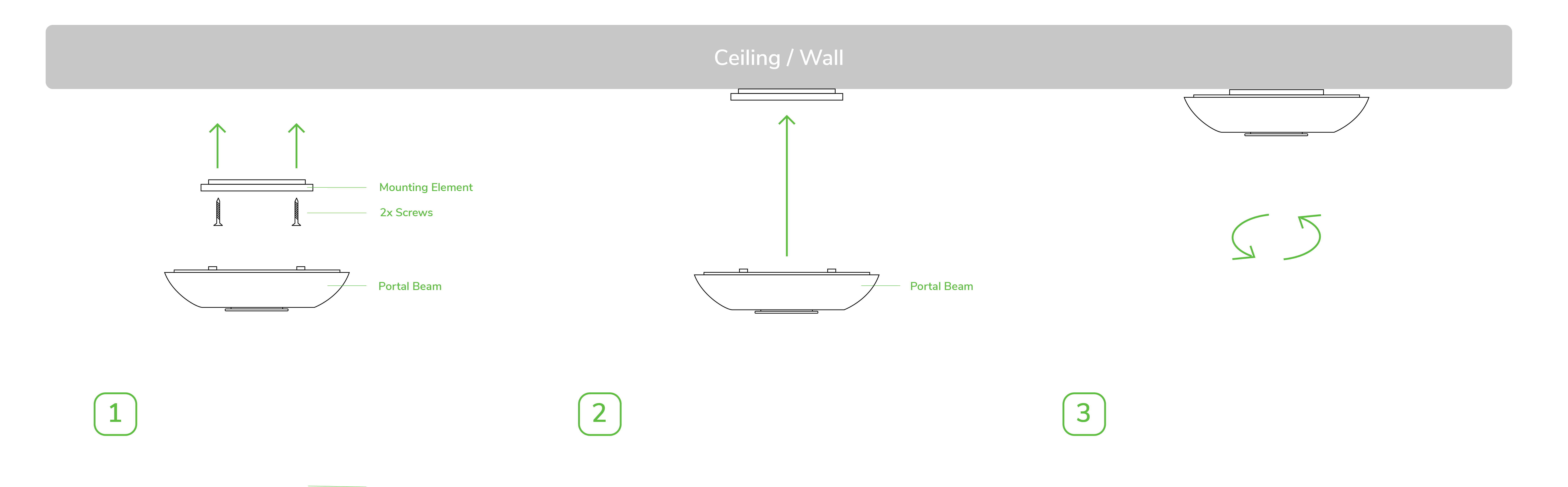

Plate mount
Mounted to the ceiling or wall using the supplied screws, anchors, and mounting plate.
Drill two mounting holes into the ceiling or wall and insert supplied anchors.
Place the mounting plate against the ceiling or wall and fasten it to the ceiling with the supplied screws.
Place the Beam Mini 2 into the mounting plate and rotate gently to lock it.
Click image to enlarge
T-bar ceiling mount kit
Mounted with a t-rail mount to a suspended ceiling.
Put all kit elements together.
Lock the t-rail to the suspended ceiling bar.
Screw standard mount to t-rail mount.
Place the Beam Mini 2 into the standard mount and rotate gently to lock it.
Click image to enlarge

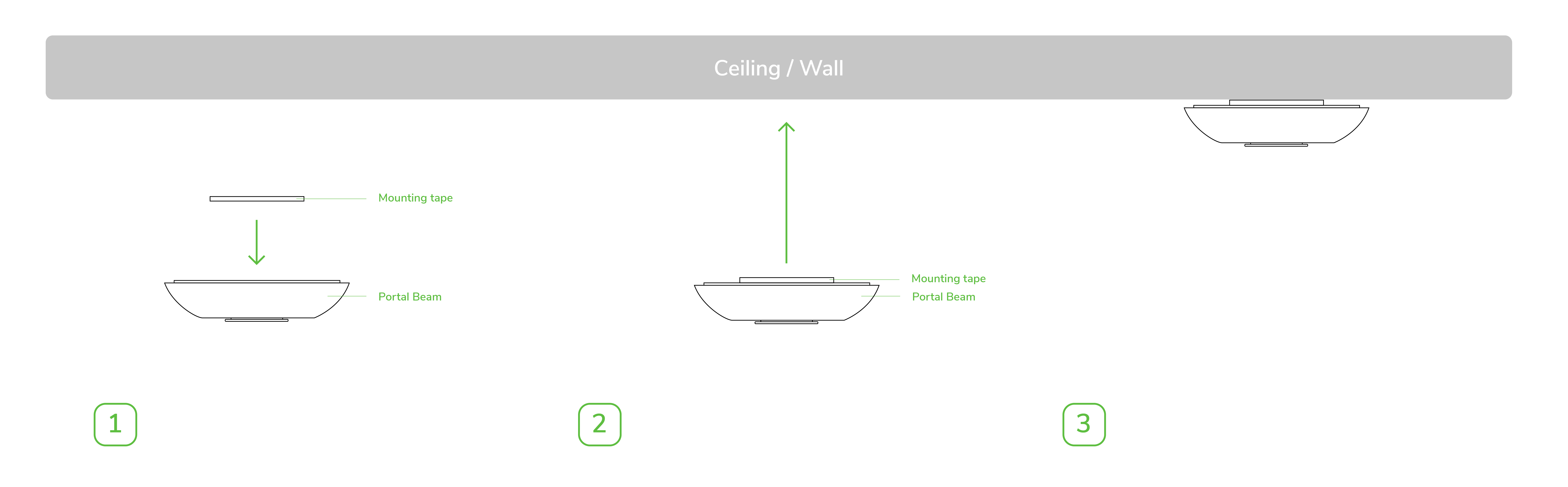

Tape mount
Warning: Recommended for use if the plate mount or T-bar ceiling mount cannot be performed or for use during a short-term mounting placement.
Mounted directly to the ceiling or a wall using the supplied 3M double-sided mounting tape.
Peel one side of mounting tape and affix it to the backside of the mounting plate.
Peel the other side of the mounting tape and affix it to the ceiling surface.
Align the mounting plate tape to the ceiling tape and press to secure.
Place the Beam Mini 2 into the mounting plate and rotate gently to lock it.
