Within Company Settings, Entity Types define how your organization categorizes entities, which are the assets or people within the Kio Apps.
Topics include:
-
You must be assigned to the Company Settings Administrator role.
-
Each Entity Type is assigned to a profile type - identifies the types of entities within the Kio Apps including mobile assets, static assets, or people.
-
Each Entity Type can be shared with one or multiple Kio Apps (Associated Apps) - results in their assigned entities being available in each associated app.
-
Each Entity Type is set with system icon and color - provides a visual identifier within the maps and views within the Kio Apps.
-
Entity Types are used within Entity Types Rules in Room Types - to automate the status of entities (assets or people) by their room locations and set PAR levels.
-
Entity Types can be assigned to Alert Rules within the Kio Apps.
Although both Entity Types and Entities are managed in Company Settings, they can also be managed within the Kio Apps.
The following table provides a reference of what Entity Types and Entities are named in within each of the Kio Apps.
Kio App |
Entity Types are the... |
Entities are the... |
---|---|---|
Asset Tracker |
Asset Types |
Assets |
Clinical Staff Flow Analytics |
Staff Roles |
Staff |
Hand Hygiene |
Dispenser Types Staff Roles |
Dispensers Staff |
IV Pump |
IV Pump Types |
IV Pumps |
Patient Elopement |
Patient Category |
Patients |
Patient Elopement |
Resident Category |
Residents |
Patient Flow |
Staff and Patient Types |
Staff and Patients |
Staff Safe |
Staff Roles |
Staff |
Staff Workflow Analytics |
Staff Roles |
Staff |
Wheelchair Manager |
Wheelchair Types |
Wheelchairs |
Each Entity Type is configured with the following settings.
Setting |
Description: |
---|---|
Profile Type |
Identifies the type of Entities within the Kio Apps.
|
Associated Apps |
Identifies the Kio Apps that an Entity Type is shared with - resulting in the entities (assets or people) assigned to the Entity Type being available within the apps. This is especially valuable when you have multiple Kio Apps.
|
Status Descriptor |
The statuses for use in Entity Type Rules that are set in Room Types. These rules provide the capability to automate the status of entities (assets or people) by their real-time room location. The system has five statuses and for each system status you can set custom statuses. The custom statuses commonly represent your organization's tracking status workflow or business rules. |
Attributes |
An optional setting, for use to capture characteristics or properties provided for the entities assigned to the Entity Type. Attributes function similarly to metadata by providing structured information that can be used to search for entities (assets or people) within the Kio Apps. |
-

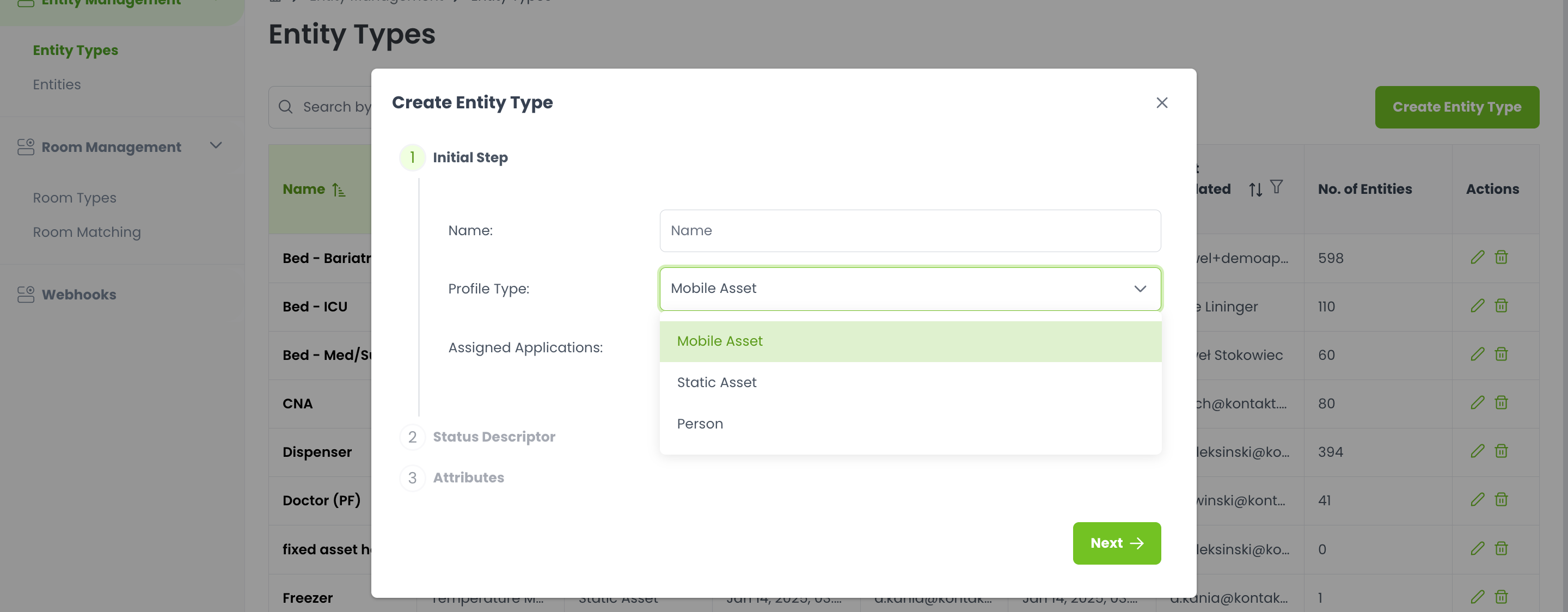

From your Kio Cloud Launchpad, select Company Settings.
-
From the Entity Management menu, select Entity Types.
-
From the upper-right corner, select Create Entity.
-
Enter its settings; refer to the above Entity Type settings.
-
When done, select CREATE.
Optionally, you can now return to the Entity Type to set its icon and color.
-

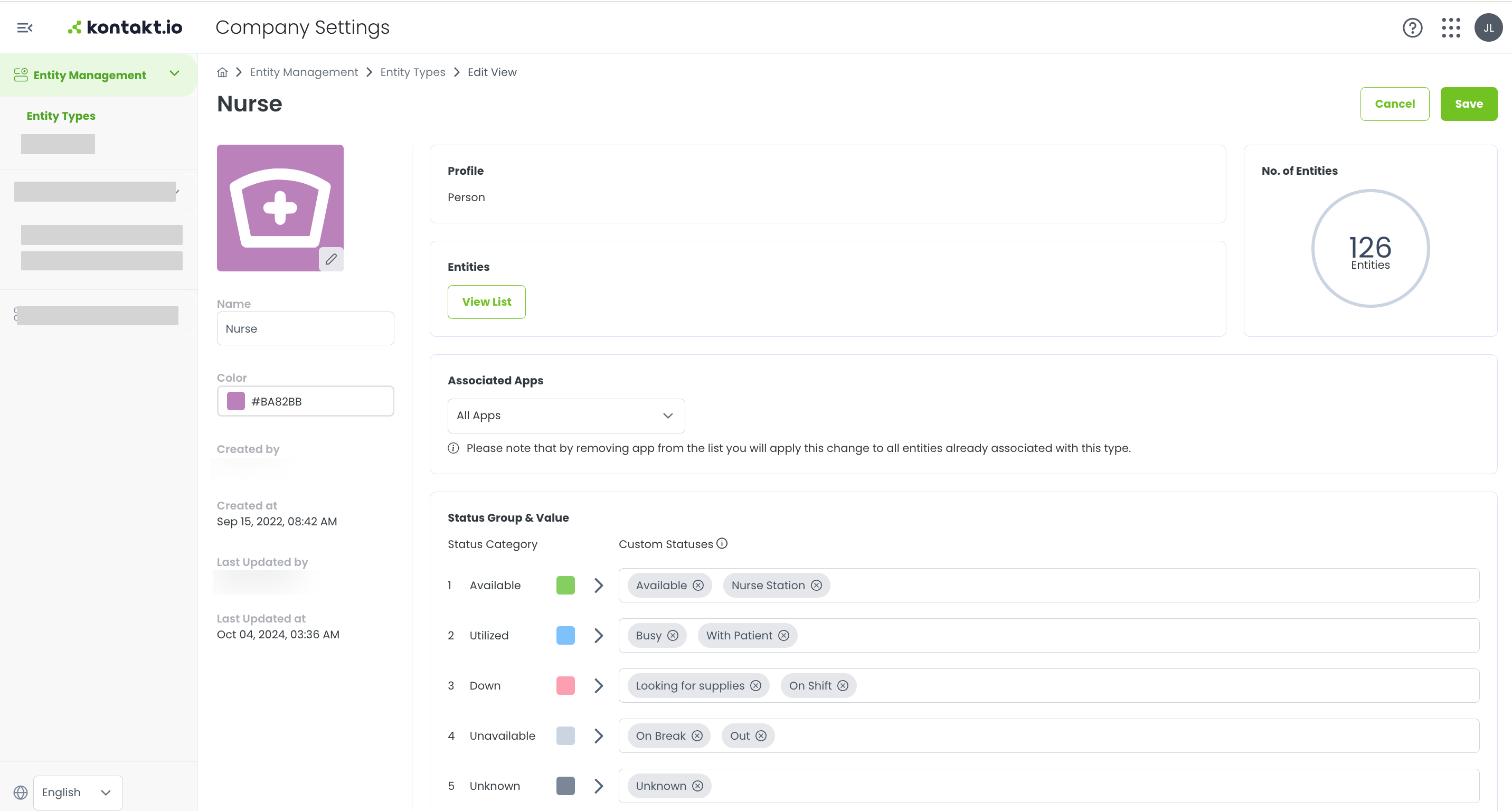

From your Kio Cloud Launchpad, select Company Settings.
-
From the Entity Management menu, select Entity Types.
-
From the list, locate and select the Name of the Entity Type > select Edit.
-
Update its settings; refer to the above Entity Type settings.
-
When done, select SAVE.

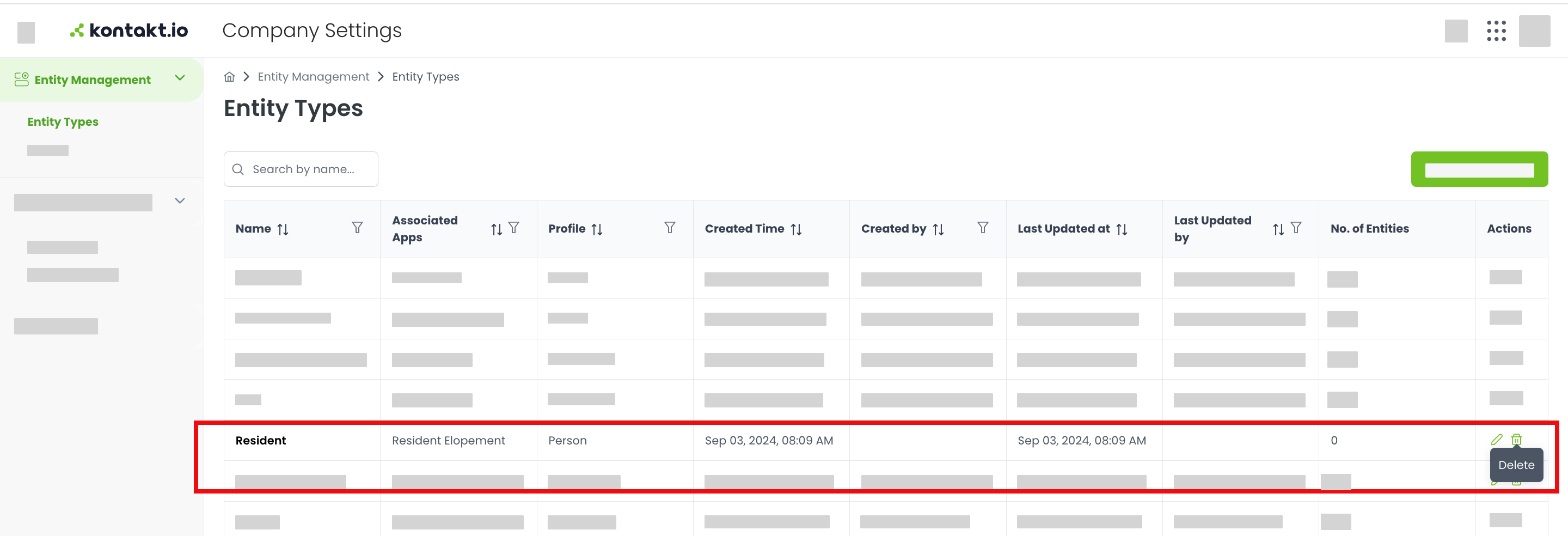

An Entity Type cannot be deleted if it has assigned Entities. Its profile displays the number of its assigned entities. Selecting the VIEW LIST option displayed the assigned entities.
Warning
When you delete an Entity Type it cannot be recovered, including its Entity Type Rules and Workplace settings.
