Room Types and their Entity Status Rules are a fundamental workflow component of the Kio Apps. From each Room Type, you can set Entity Type Rules to automate the status of entities (assets and people) by their room location. For Kio Apps' analytics, Room Types status rules must be configured or the status of entities are required to updated manually by users within the apps.
Topics include:
-
You must be assigned to the Company Settings Administrator role.
-
Entity Type Rules use the system statuses - Available, Utilized, Down, Unavailable, Unknown.
Each system status has a custom status that is set within each Entity Type. Custom statuses are commonly set values used within your organization's workflow or business rules.
Unknown is not included in analytics - its purpose is for use when Company Settings is not set up with Room Types or Room Matching.
-
A Entity Type Rule applies to all entities assigned to an Entity Type.
-
Be sure your Smart Location rooms are matched to their Room Type. This is required for Entity Type Rules to apply to rooms.
Understanding the power of Room Types and their Entity Type Rules is essential for various use cases. The outcomes result in knowing the availability of asset or people and aggregating data for Kio Apps analytics.
Set rules to automatically update the status of assets as they move to different rooms. The following table provides an example of how Entity Type Rules can be set for an Entity Type of IV Pump.
Room Type |
System Status |
Custom Status example |
---|---|---|
Clean Utility Room |
Available |
Ready for Use |
Dirty Utility Room |
Down |
Maintenance Required |
Nurses' Station |
Unavailable |
Idle |
Patient Care Area Room Types: Patient Room, ICU/CCU Room, Pediatric Room, Maternity and Neonatal Room |
Utilized |
In Use |
Set rules to automatically update the status of staff or patients as they move to different rooms. The following table provides an example of how Entity Type Rules can be set for an Entity Type of Nurse.
Room Type |
System Status |
Custom Status example |
---|---|---|
Nurses' Station |
Available |
At Nurse Station |
Break Room |
Down |
On Break |
Medication Room |
Unavailable |
Retrieving Supplies |
Patient Care Area Room Types: Patient Room, ICU/CCU Room, Pediatric Room, Maternity and Neonatal Room |
Utilized |
With Patient |
-
From your Kontakt.io Launchpad, select Company Settings.
-

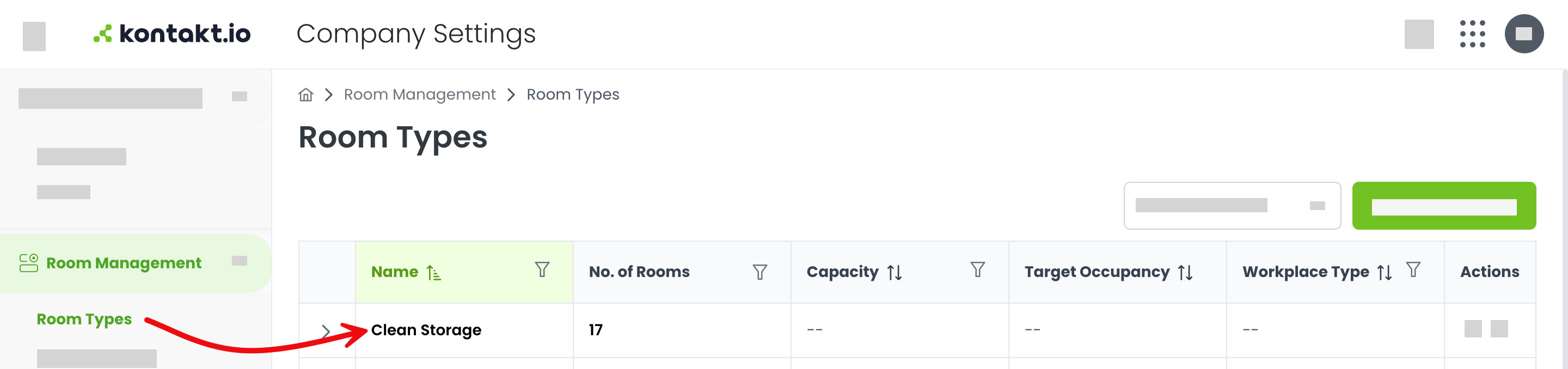

From the Room Management menu, select Room Types.
-
From the list, select the Name of the Room Type.
-

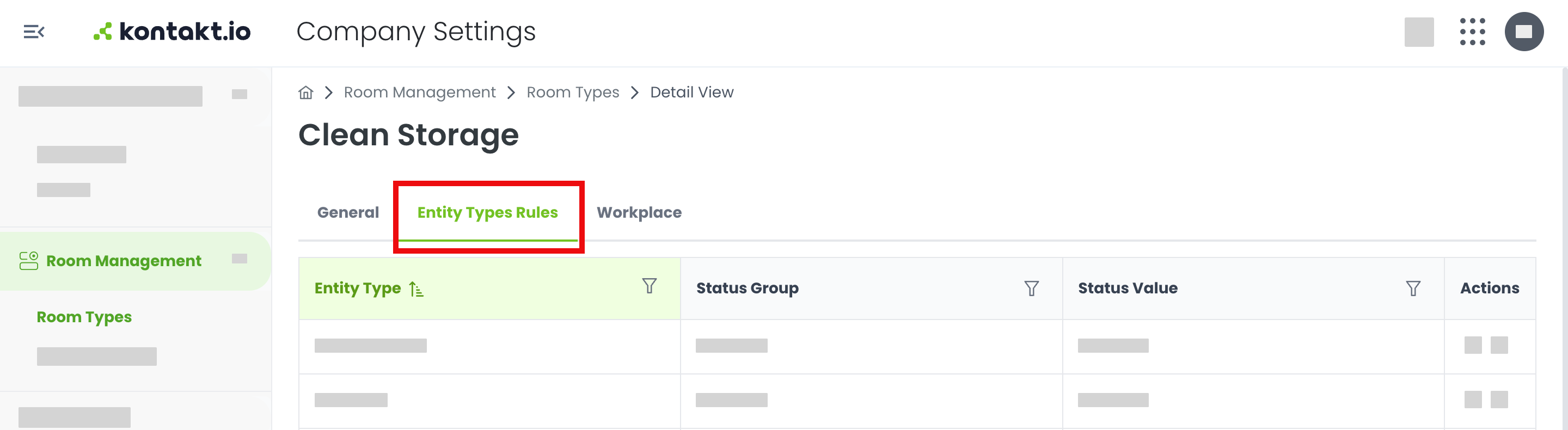

From its profile, select Entity Type Rules. A list of all Entity Types is displayed.
-

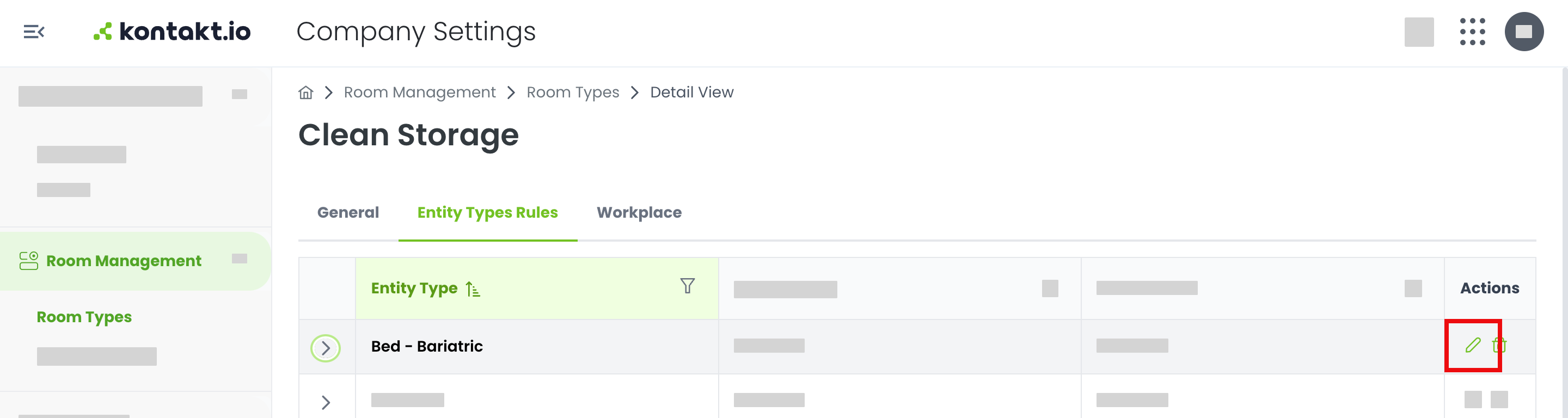

From the list, locate the Entity Type that you want to set a rule for > from its Action column, select its Edit icon.
-

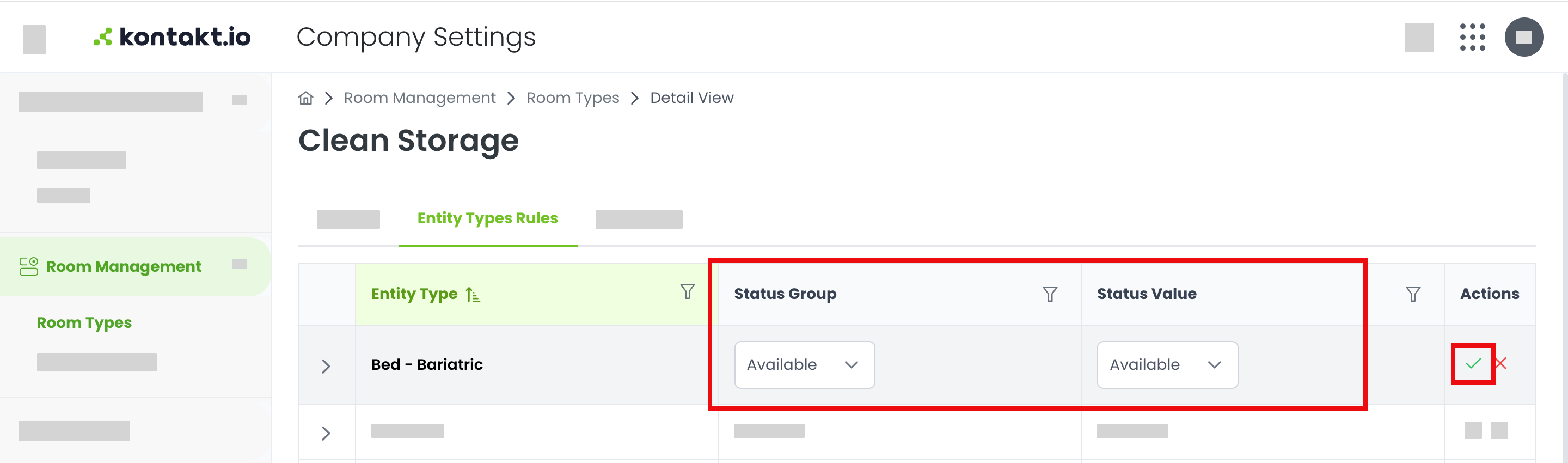

Set the Status Group (system values) and Status Value (custom values).
When entities assigned to the Entity Type are located in the room matched to the Room Type, their status automatically updates to these status values.
-
To save the rule, select the GREEN checkmark.
Repeat the above steps for each Entity Type requiring automated statuses. You can then continue to configure Entity Type Rules for each each Room Type.
Note
Room Matching must be complete for Entity Type Rules to apply to rooms.
