If you're new to Kio Asset Tracker or need a refresher, this guide is a great place to start. Whether you need to locate assets by their real-time location, manage the app setup, or interested in metrics, you'll learn about the features most relevant to your role.
Topics include:
-

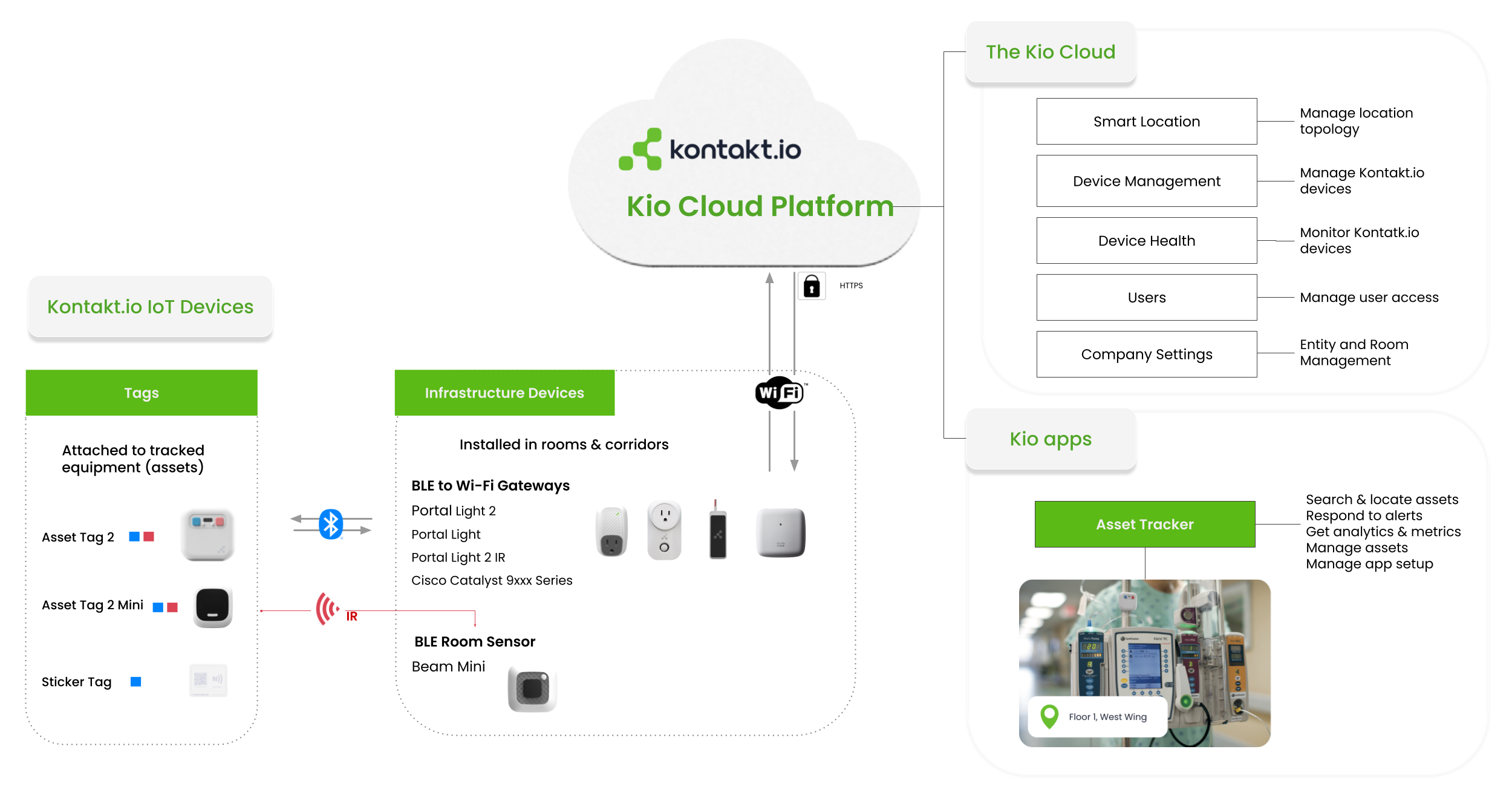

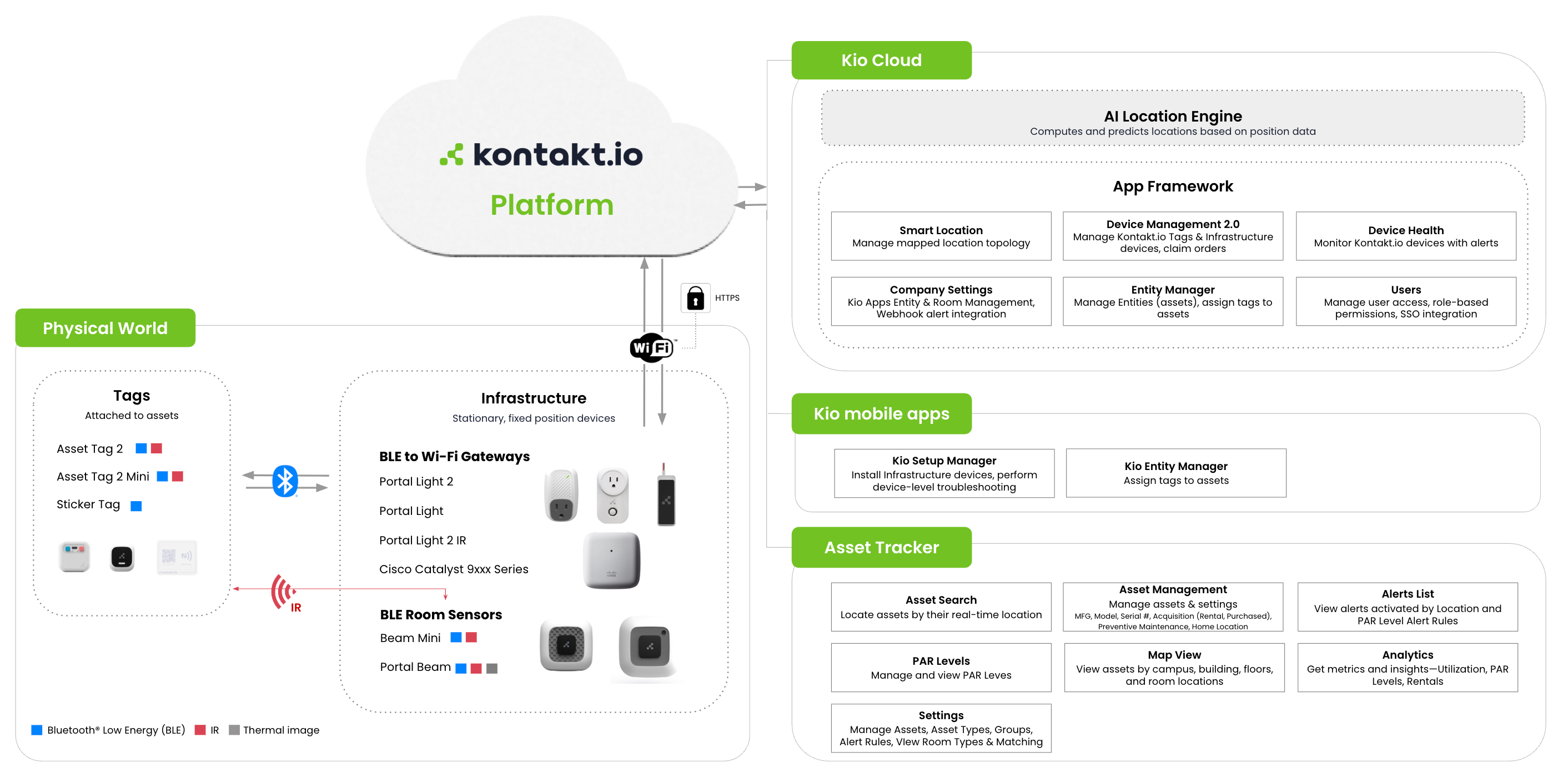

The Kio Cloud platform is suite of cloud-based apps.
It serves as the central hub where administrators manage Kontakt.io IoT devices, user access, and mapped indoor locations, and provides access to the Kio solution-based apps such as the Kio Asset Tracker.
-
Kontakt.io Tags are assigned and attached to each tracked asset (mobile medical equipment).
These Tags continuously broadcast their location data over Bluetooth Low Energy (BLE) wireless technology and their data is then received by some type of BLE to Wi-Fi Infrastructure device.
-
BLE to WiFi Infrastructure devices are installed in rooms and corridors. They receive and send Kontakt.io tag location data to the Kio Cloud platform over their connection to the local Wi-Fi network.
Your organization may also have Kontakt.io Beam Minis - resulting in 100% room-level certainty of tracked assets.
-
The real-time location of each tracked asset can be viewed from Kio Asset Tracker app - allowing you to quickly locate the right asset at the right time.
Kio Cloud is a cloud-based platform accessible through a web browser. Your organization's Kio Cloud administrator will provide you with the specific URL for signing in. Your access and permissions to the Kio Cloud suite of apps is determined by your assigned app roles, which is managed by those assigned to the Users app Administrator role.
To sign in, use one of supported web browsers listed below. We recommend the browser is at the most current version.
-
Google Chrome™ (recommended)
-
Mozilla Firefox®
-
Apple® Safari®
This method is required when your organization has not set up Single sign-on (SSO) with Kio Cloud.
Note
First-time sign-in: You should have received an activation email from Kontakt.io to set up your user profile. If you didn't, check your spam/junk folder or contact your Kio Cloud administrator.
-
From a web browser, go your organization's Kio Cloud URL > enter your email address and password > select Sign In.
-
Enter your email address and password > select Sign In.

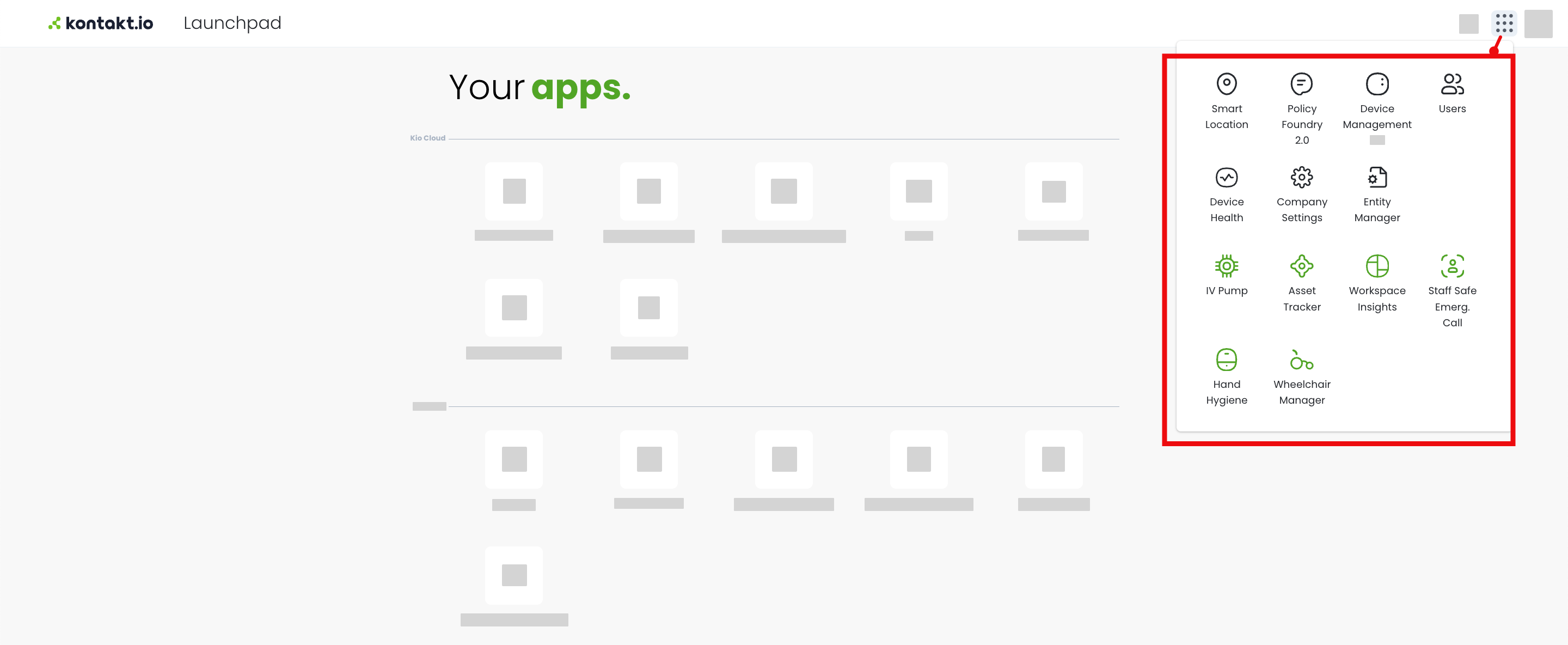

Your Kontakt.io Launchpad displays the apps for which you have an assigned role. If an app doesn’t appear, it means you haven’t been assigned a role in that app.
If your organization has set up Single sign-on (SSO) with Kio Cloud, you’ll use your organization’s identity provider to sign in.

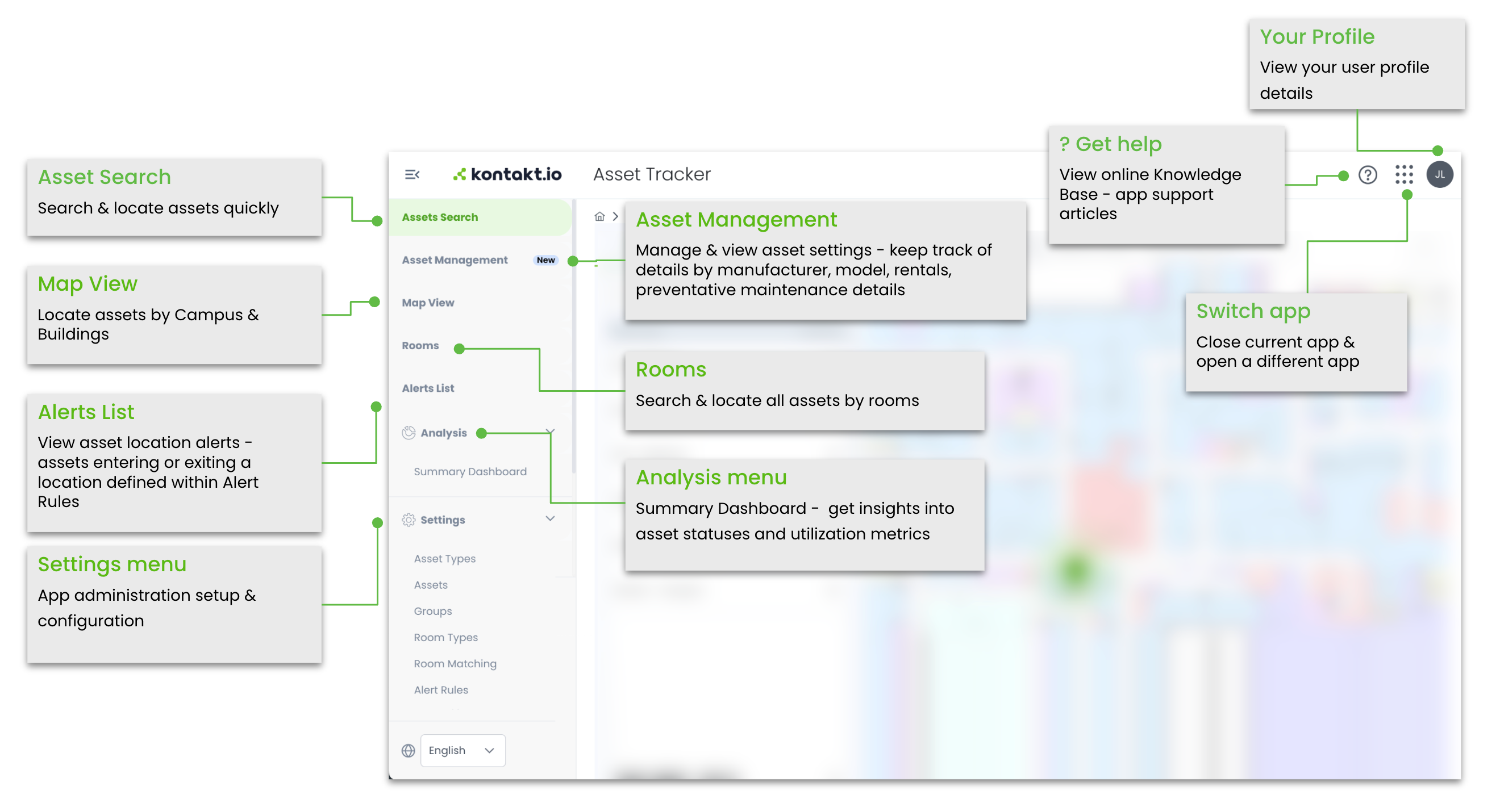

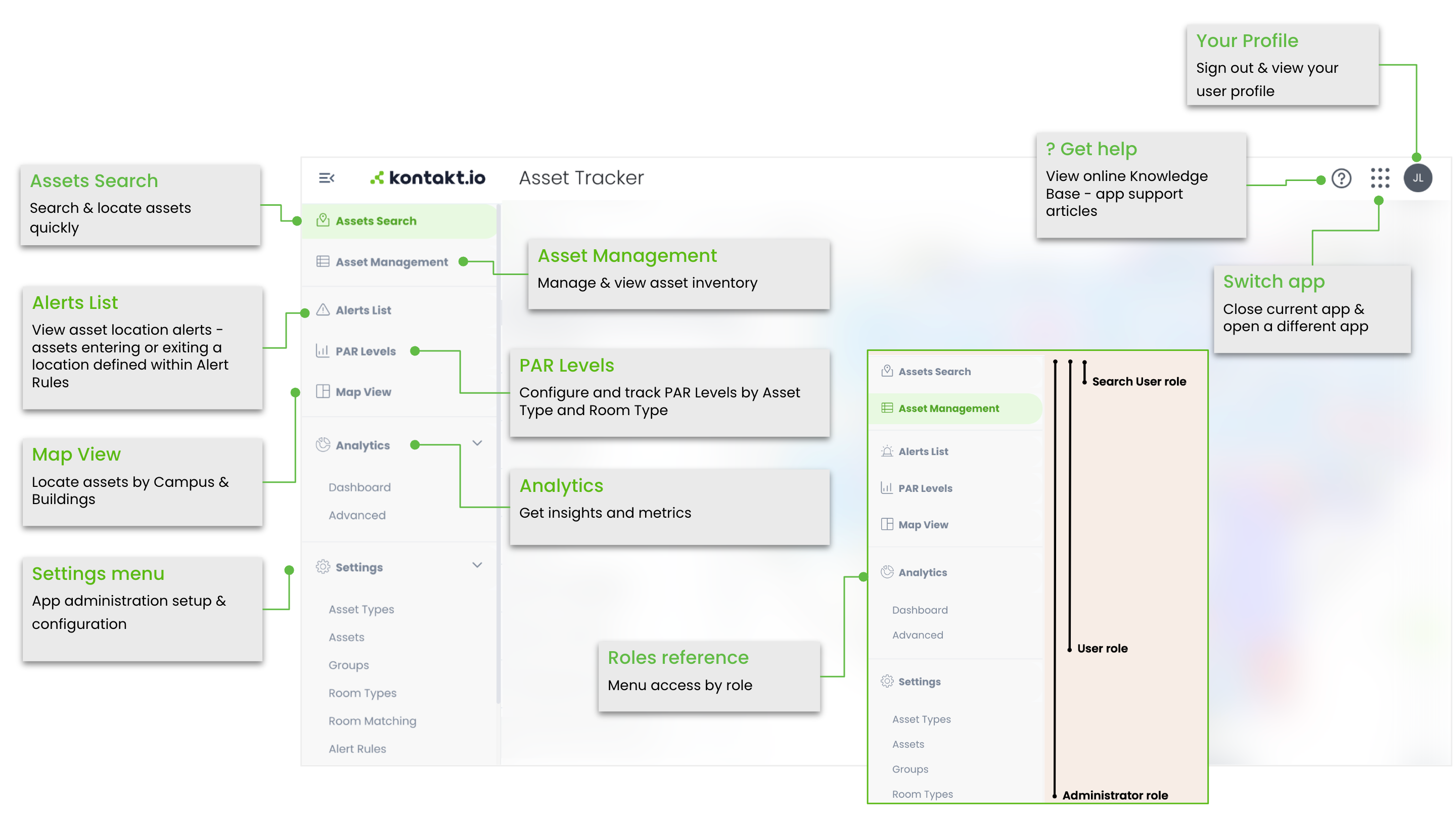

Here you'll find some pointers to help you find your way around and learn about the app features.
From the left-menu, be sure to take a few minutes to explore the following menus and their features. The menus you have access to are dependent on your Asset Tracker assigned role.
From this view, you can quickly locate assets by their real-time location, ensuring you always have access to the right assets at the right time. This view is designed for those needing to locate assets.
-

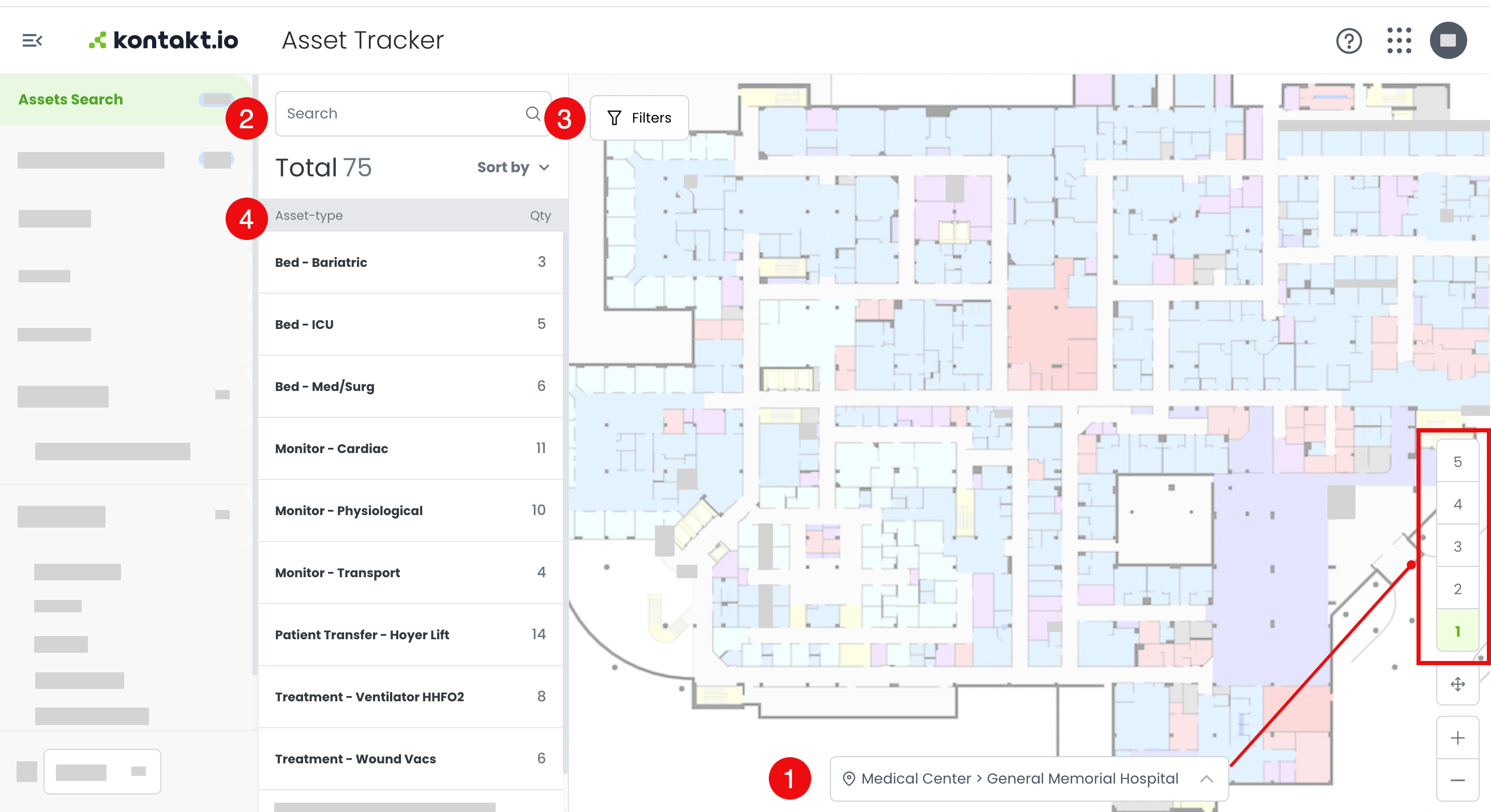

Set your location. From the bottom of the map, select your campus and building location.
Once set, you can navigate between the building floors from the map’s floor navigation bar.
-
Search for assets. Easily locate assets by their details.
Search by an asset's ID, name, type, or system or custom attributes. For example, if assets are configured with system attributes such as Manufacturer or Model, simply start entering a known value to find them quickly.
-
Apply a filter. Refine the displayed assets by applying one or more filters to pinpoint exactly what you’re looking for.
Once you’ve set a filter, you can copy the URL to save it as a browser favorite or share it with other Asset Tracker users.
-
View asset locations from the floor map. When you select an asset type, a specific asset, or apply a filter, the map automatically updates to display your selection.

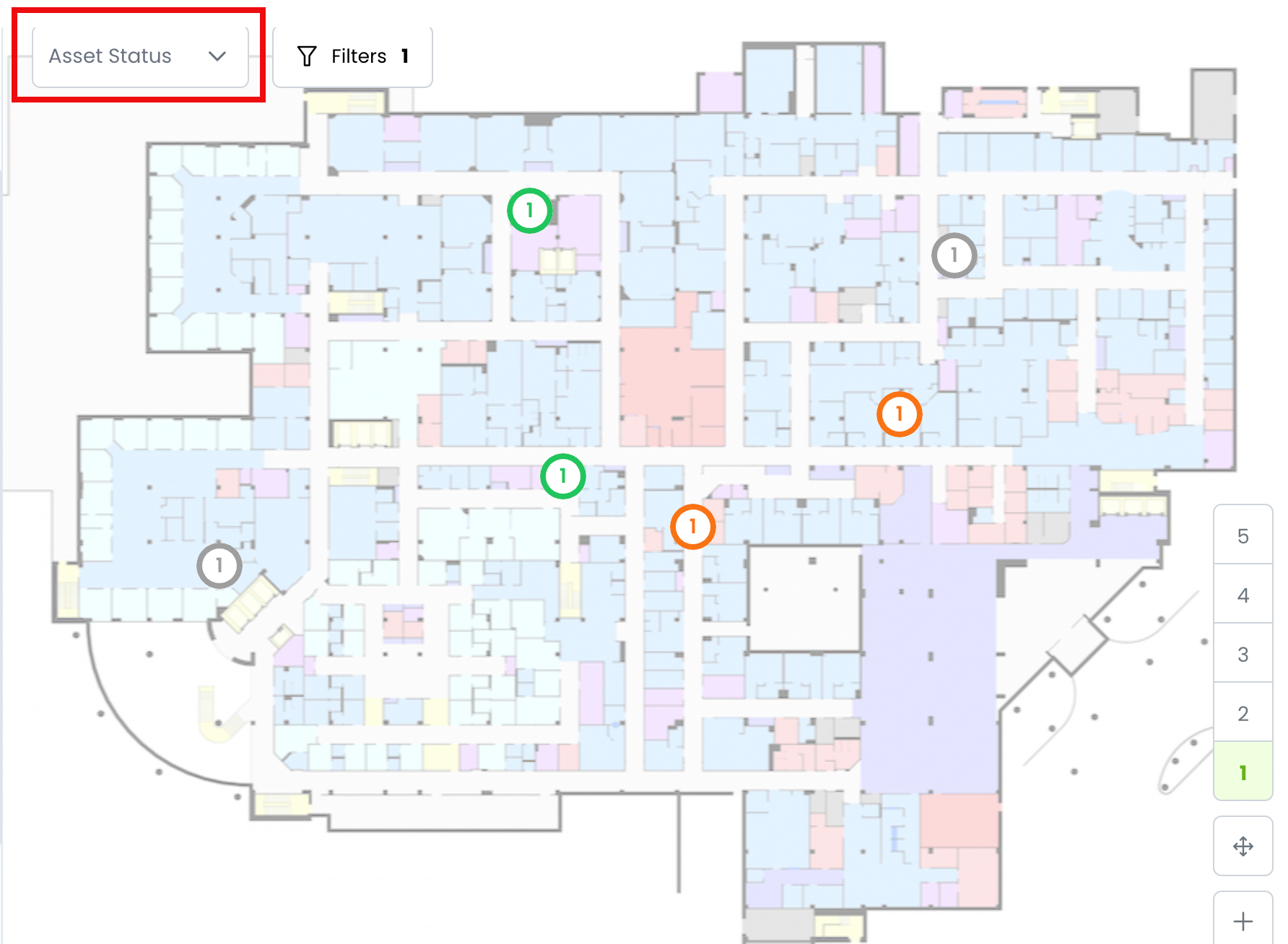

You can also apply an Asset Status filter - simplifying locating assets by their real-time location and status.
The map uses visual icons to indicate the status of assets:
Green: Available
Red: Utilized
Grey: Unavailable
Grey with a “/” icon: Down
Grey with a “?” icon: Unknown
From here, you have a complete list of all assets, including access to their settings, location details, and is where you can add new Assets. The view is designed for those responsible for managing assets.
-
Add a filter to narrow down the assets displayed - add multiple filters when needed.
-

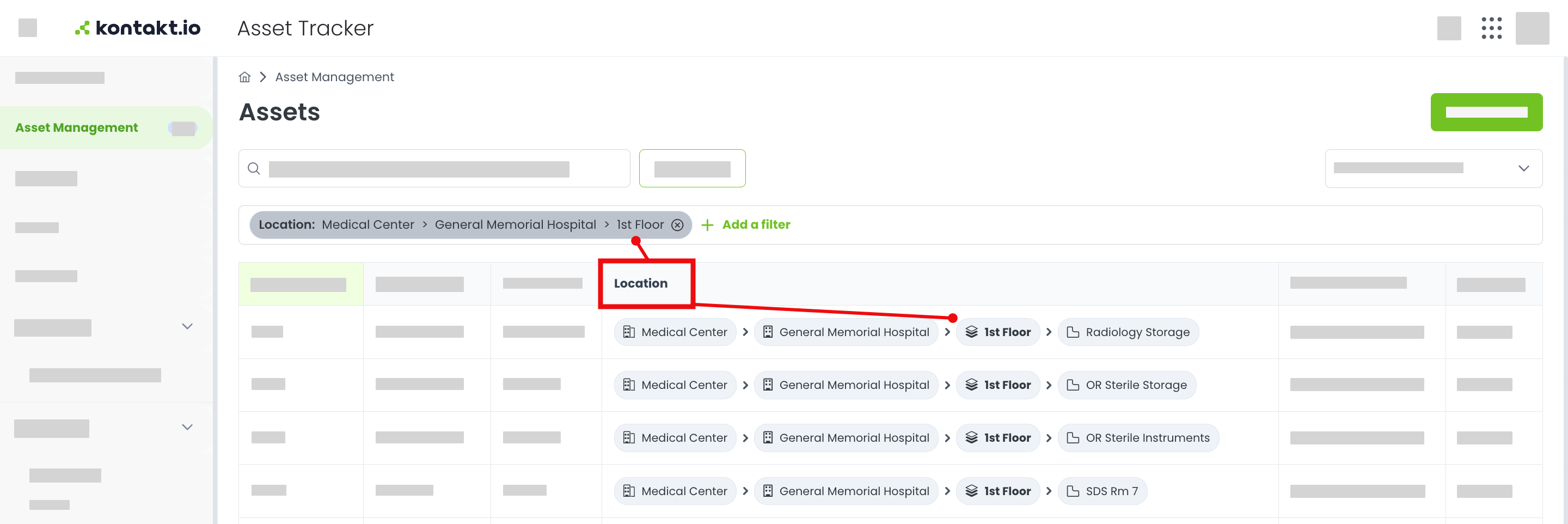

The Location column offers dynamic filtering. Select a location value to automatically filter the assets displayed.
-
Use the search option to quickly locate an asset by its ID, name, attribute values, or its assigned Kontakt.io Tag 12-character MAC address. Searching by MAC address can be helpful if you find a tag not attached to an asset.
-

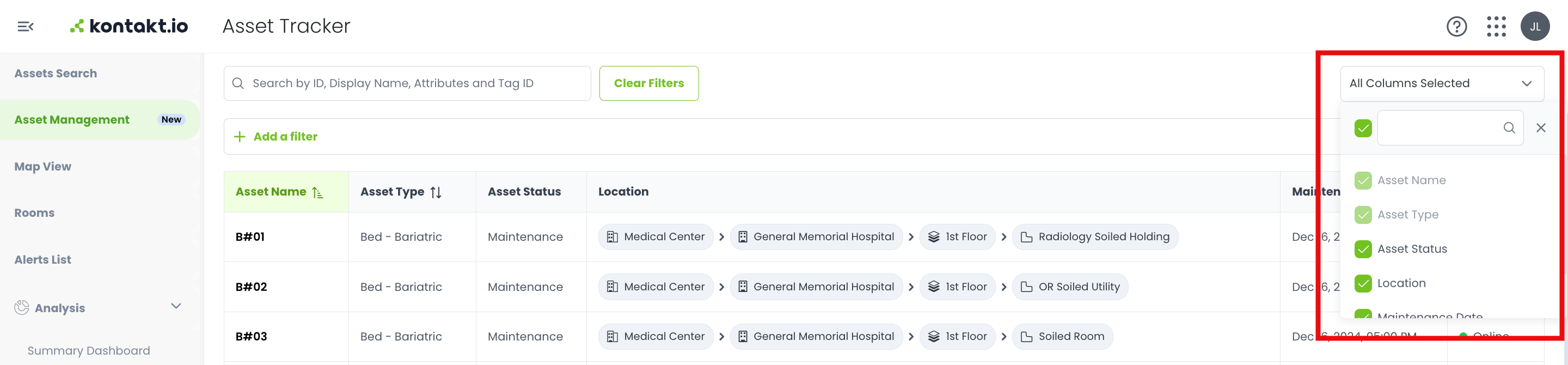

Set the columns displayed to view the information most important to you.
-

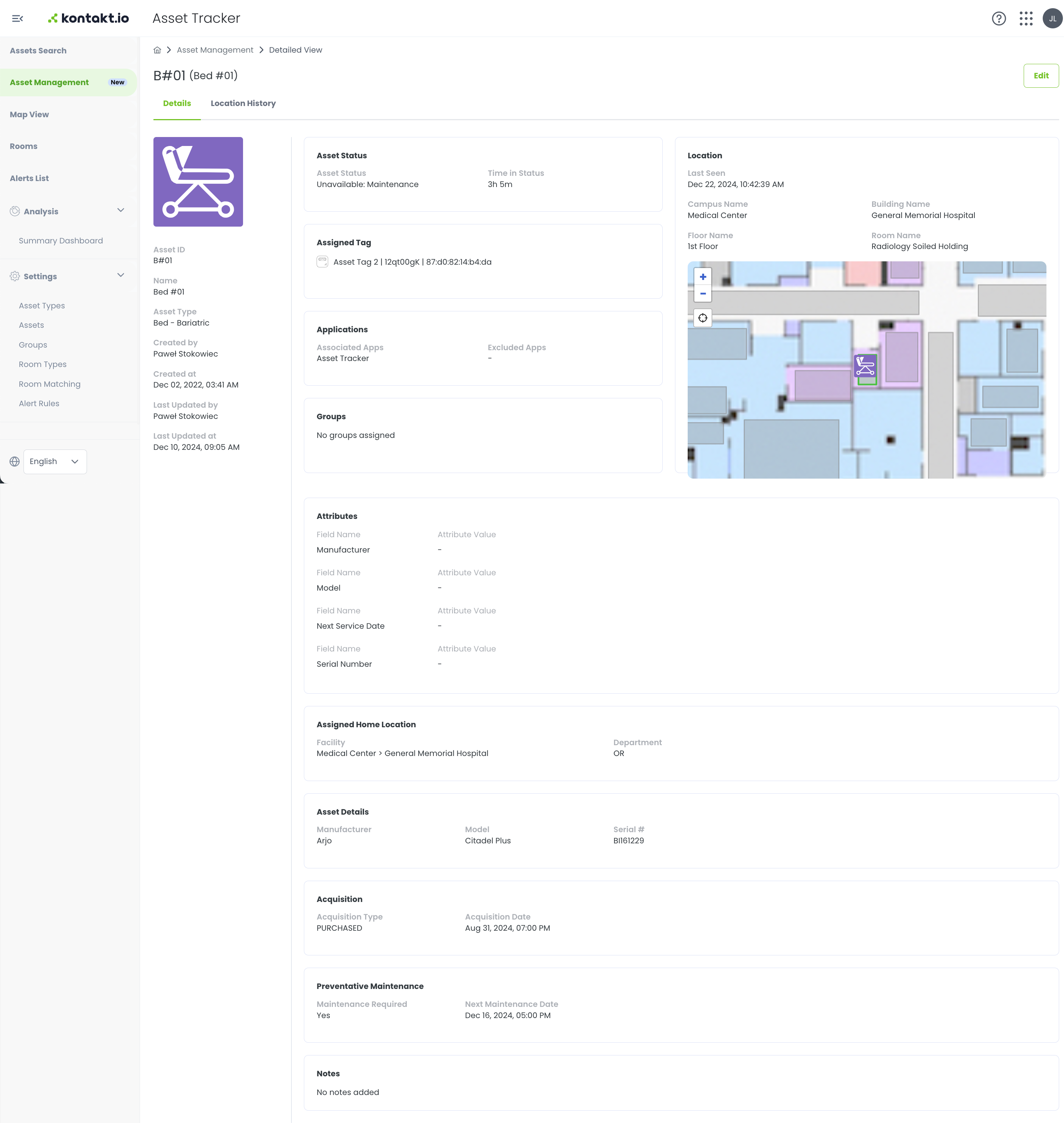

From the list, select the Asset Name to view its settings, real-time location, and location history.

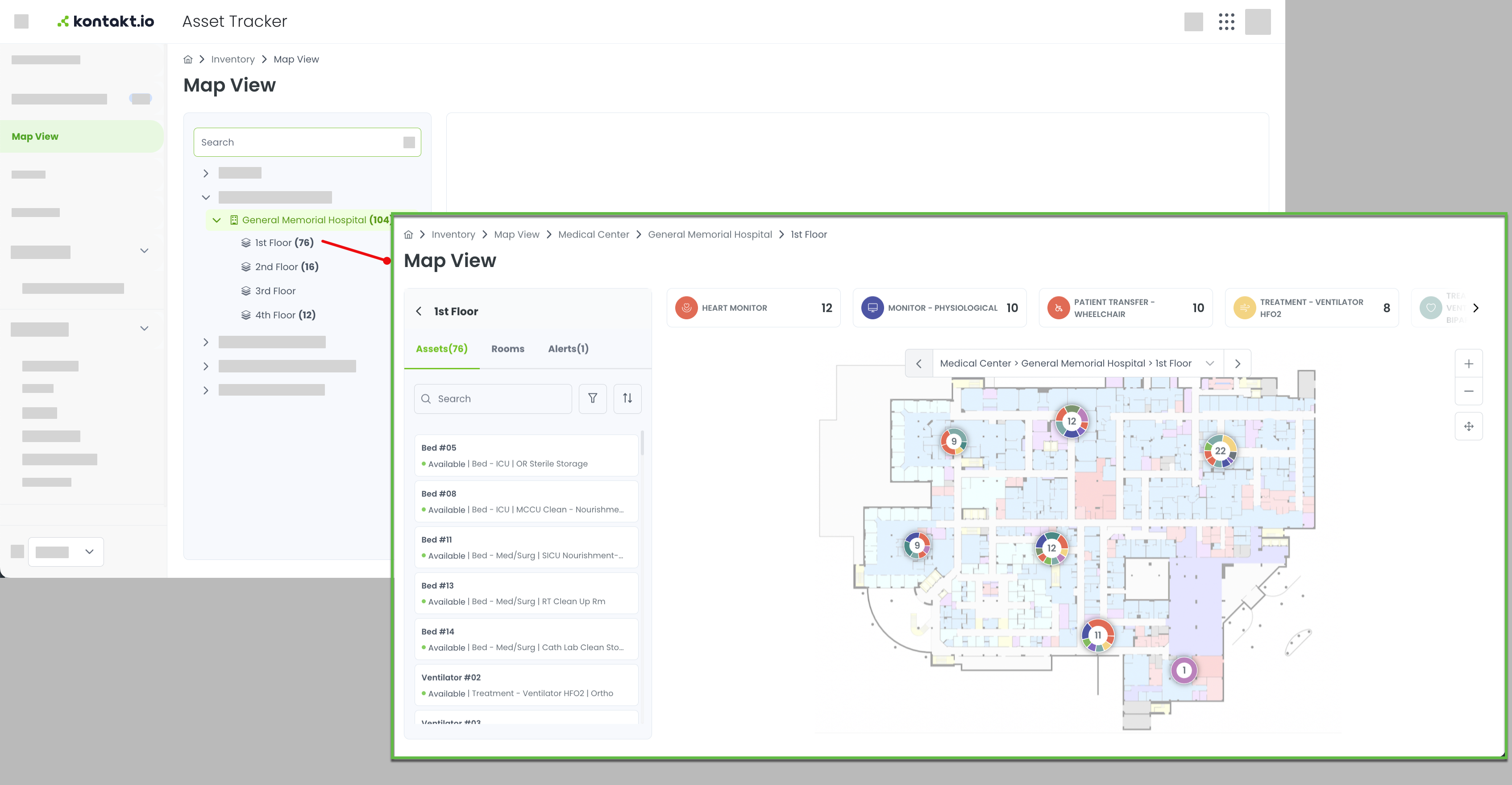

From here you can navigate to a specific campus, building, and floor to view all the assets currently located within a floor. This view can be particularly useful if you have multiple campuses or buildings.

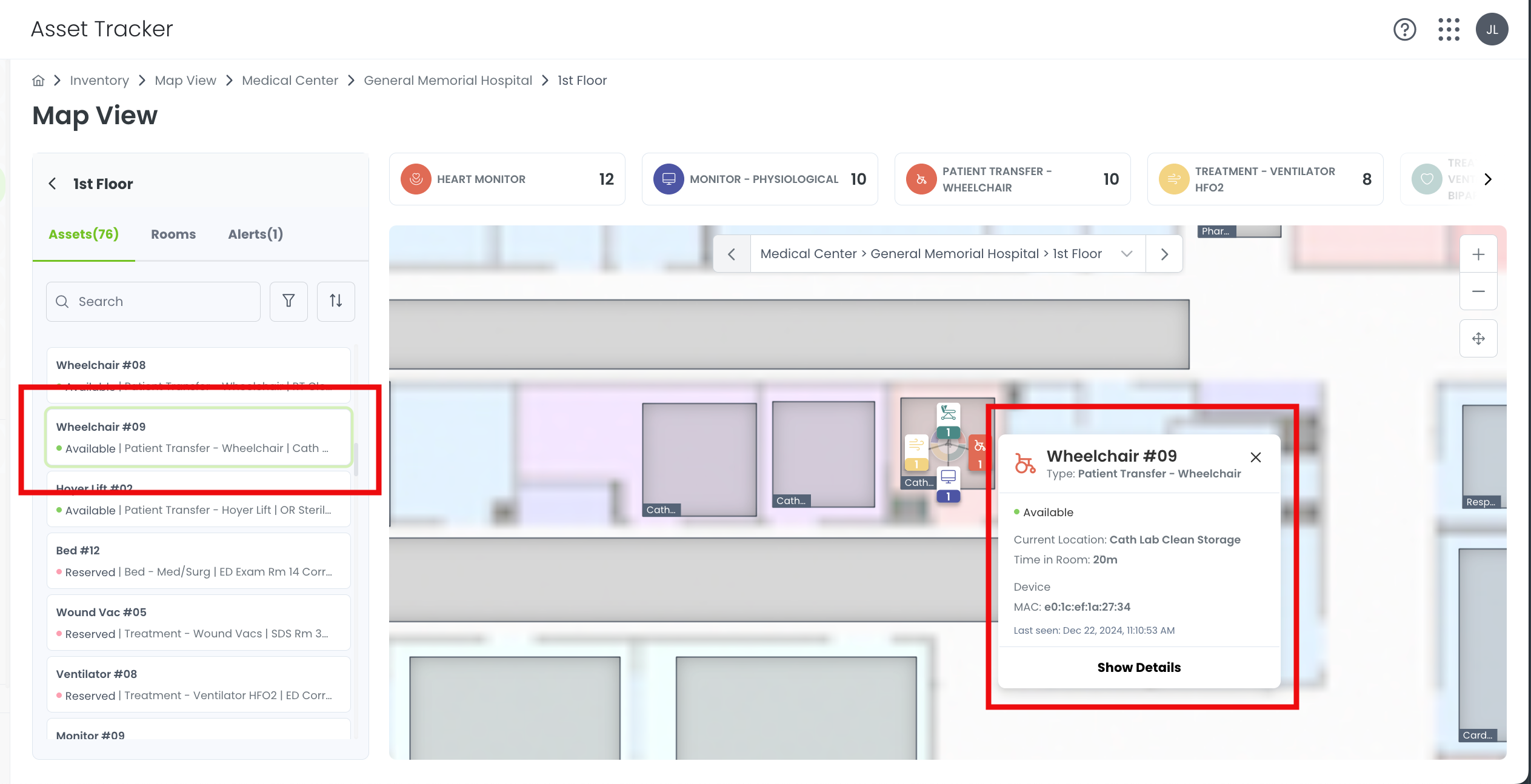

From the list, select an asset to view its location and details from the floor plan map.
From this view, you can see the assets located in a selected room. For example, you might want to check the available assets in a storage room. Additionally, you can access the room's location history, which provides details about assets that were previously located in the room. This feature is particularly useful for tracking both current assets and historical movements within a specific room.

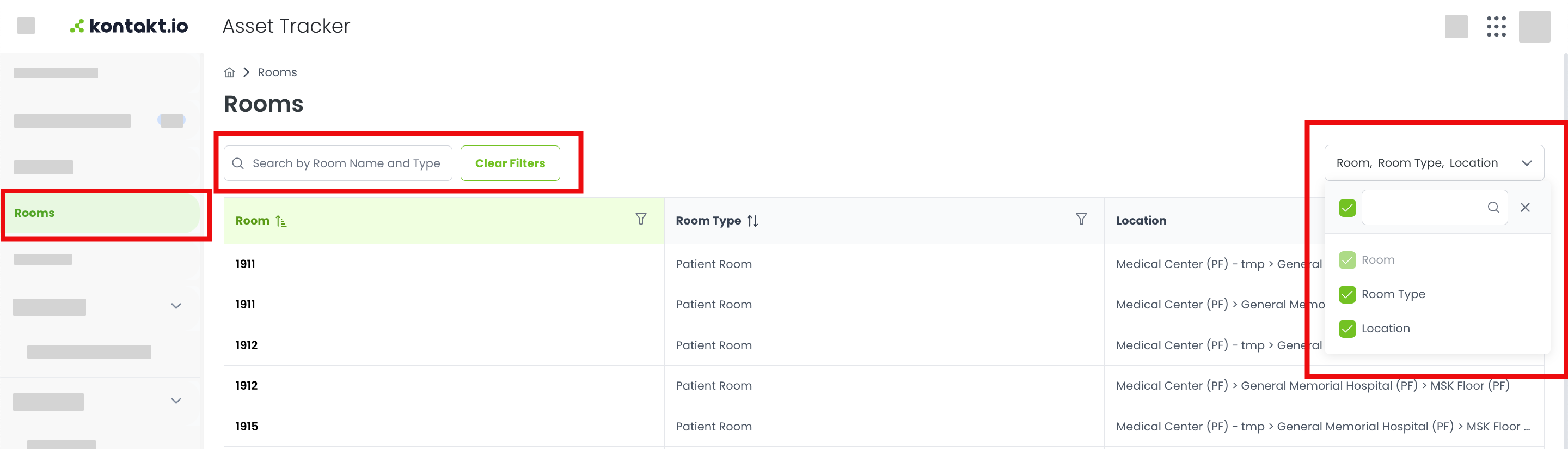

Search by room name, room type and set the columns displayed
-
Select a room to view its details including the assets currently located in the room.
-
View the room's location history - a log of each asset that had been located in the room.
Asset Tracker can be configured with Alert Rules to notify staff whenever an asset enters or exits a specific location. From this view, you to can view and respond to active alerts and view all alert. Additionally, you can access the details of each alert for further context and action

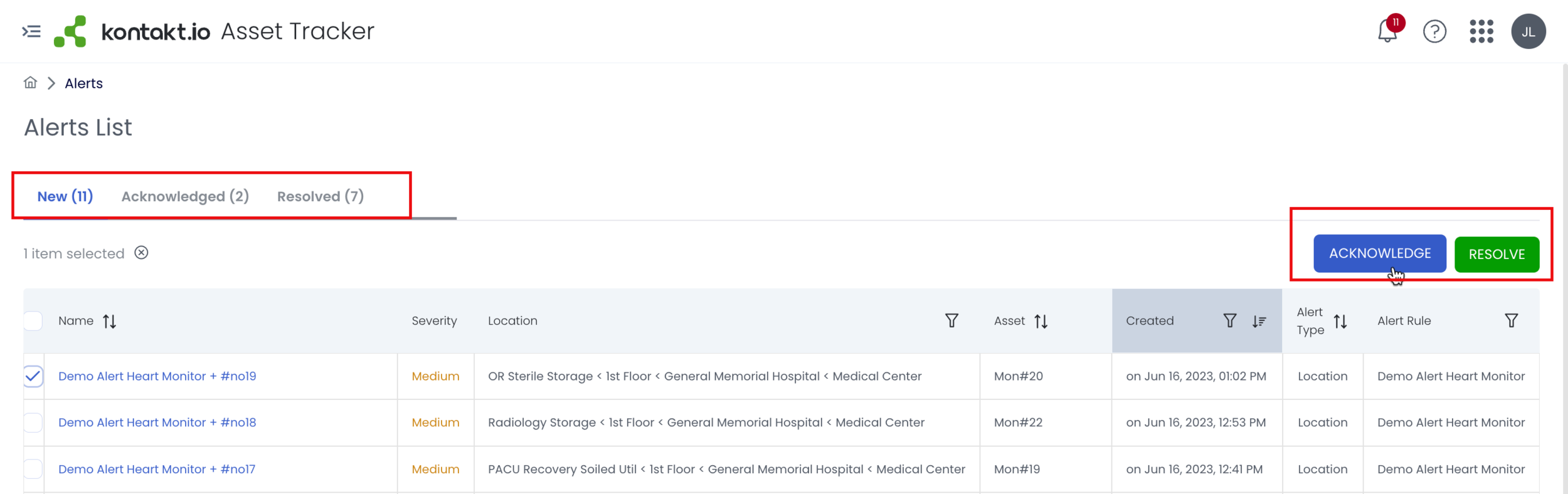

Alerts are categorized by their current status — New, Acknowledged, and Resolved — providing an instant overview all alerts.
-
When you are taking action on a new alert, select Acknowledge. This is quick method share with other alert notification recipients that someone is responding to the alert.
-
When you have resolved the condition that resulted in the alert, select Resolve.
-
To view the details and activity timeline of an alert, select its Alert Name. From its alert details, you can also download an Alert Incident Report.

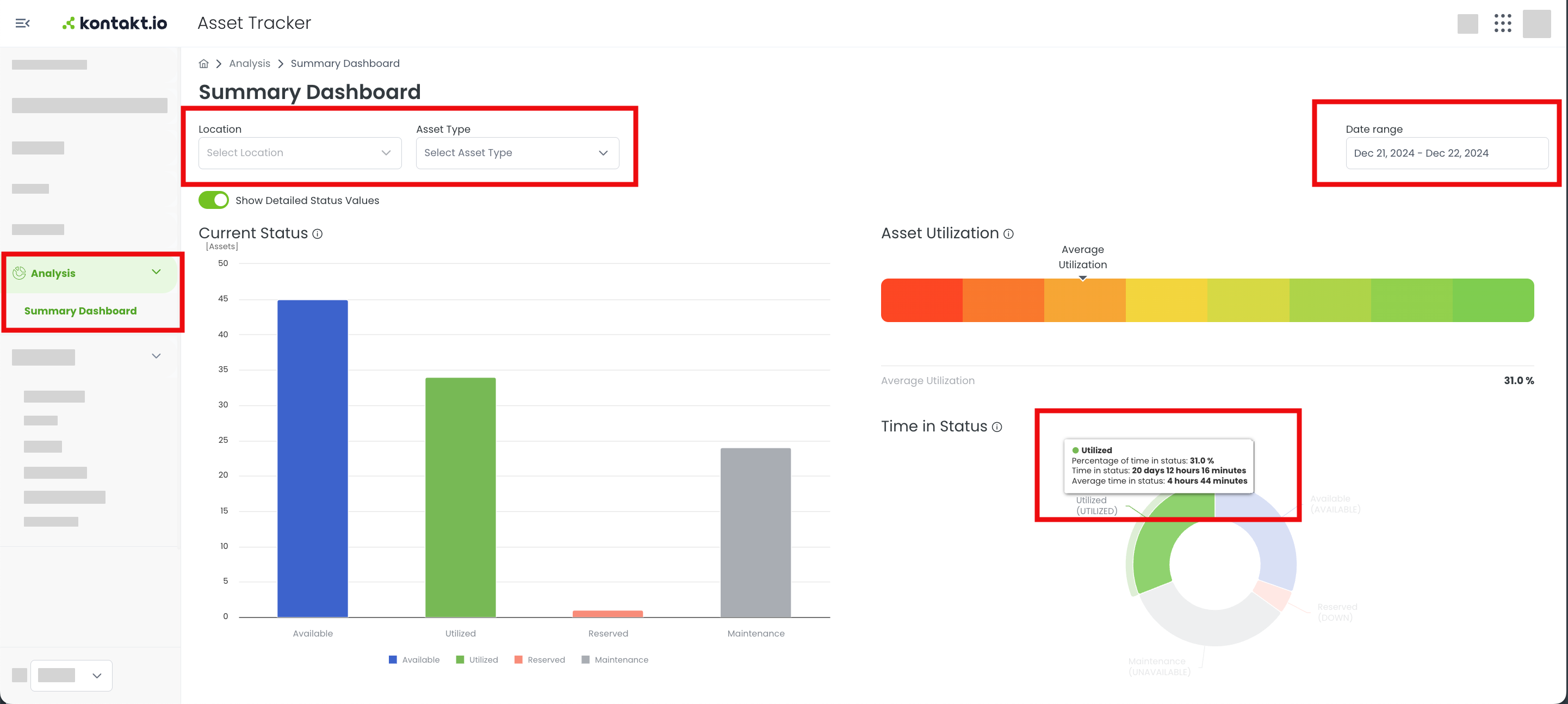

From the Summary Dashboard, you'll find a quick snapshot of asset statuses and utilization metrics. This data can be helpful to analyze inventory levels and use.
-
Filter by Asset Type and Location.
-
Set a date range to view metrics for a specific time period.
-
Hover your mouse over a graph section to reveal additional information.
This is where app administrators manage the asset settings and tracked inventory. This menu is only available to those assigned to the Asset Tracker Administrator role.
-
Asset Types: Are how assets are categorized that deliver analytics and provided in many of the views to search and locate assets by type.
-
Assets: The tracked equipment (asset) inventory. Kontakt.io Tags are assigned to and attached to each asset - allowing staff to locate assets by their real-time location.
-
Groups: Provides an additional method to segment assets. Unique to groups, assets can assigned to one or multiple groups. Groups can be assigned to Alert Rules to provide alerts for the specific assets assigned to a group.
-
Room Types (managed from Company Settings): View only access - providing a list of all room types and their details.
-
Room Matching (managed from Company Settings): View only access - including rooms not matched and matched room details.
-
Alert Rules: Provide a method to notify staff when an assets enter or exit a location.
To open a different app, from the upper-right corner select the Navigation menu and select an app.
The apps displayed are dependent on your user profile's assigned roles by app. If you are not assigned to a role within an app, the app is not displayed.
When you want update your user information or sign out, from the upper-right corner select your user initials. For Administrators, this is also where you can find your Kio Cloud API key.
For security purposes, we do recommend to sign out when not actively using the app.
